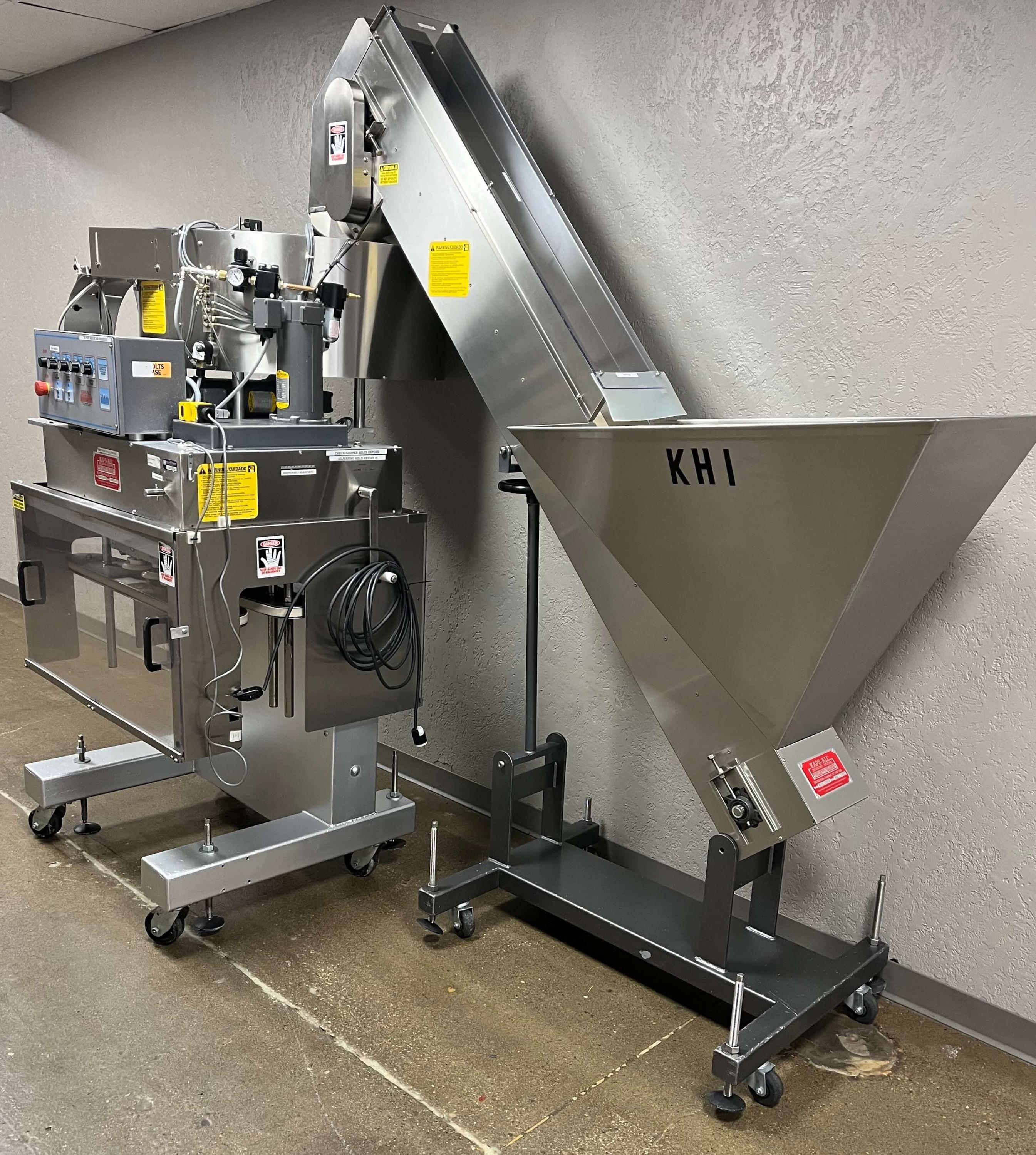

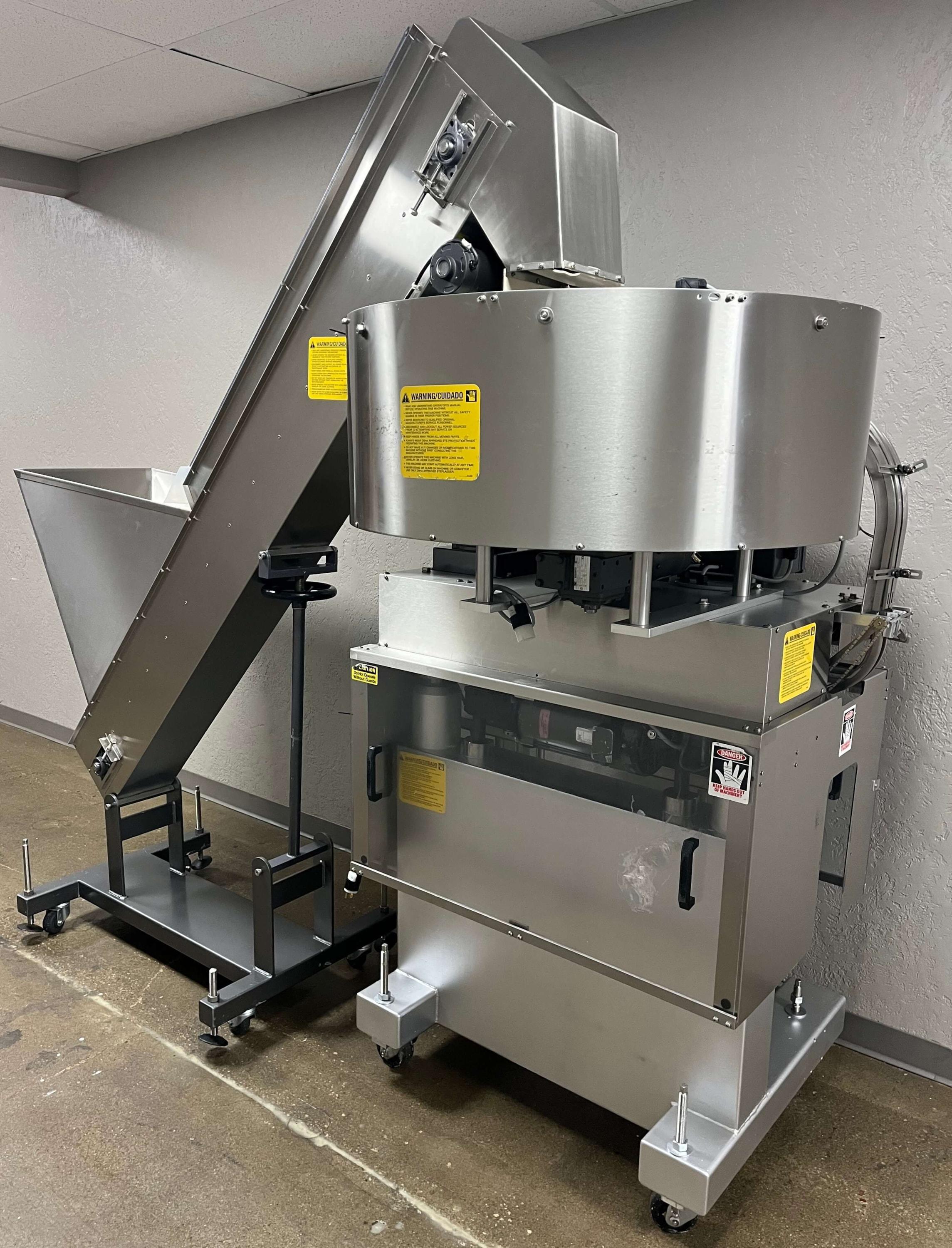

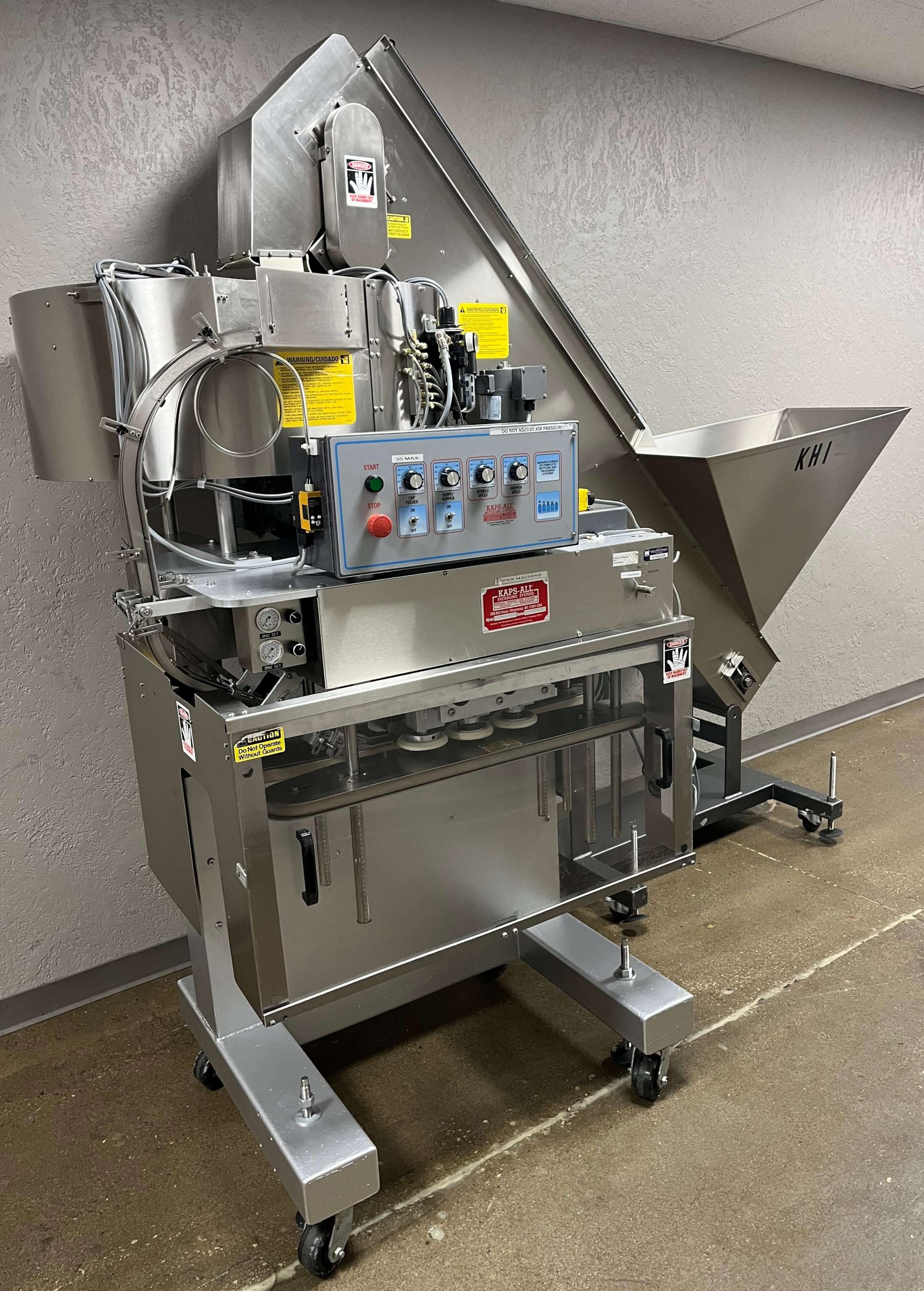

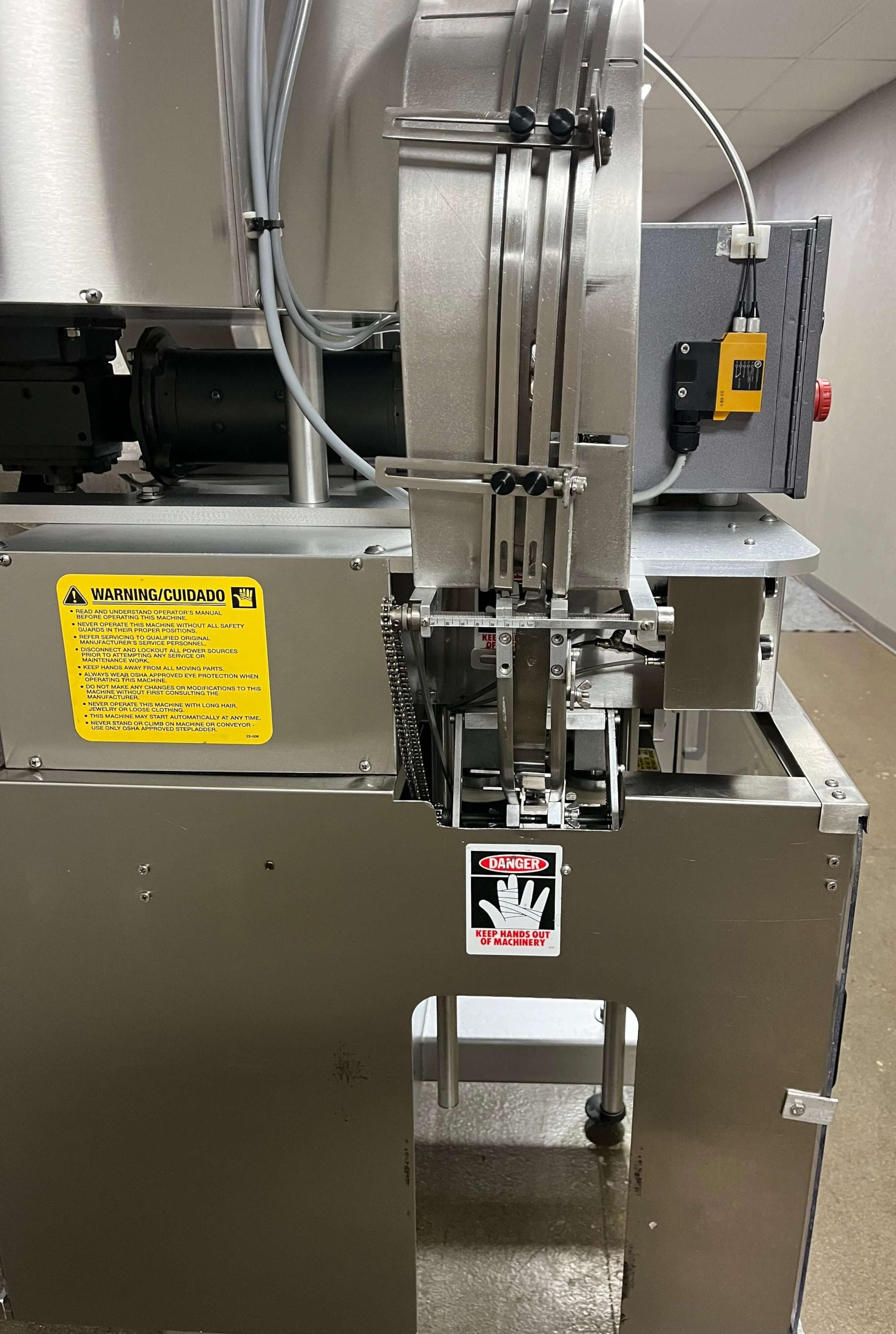

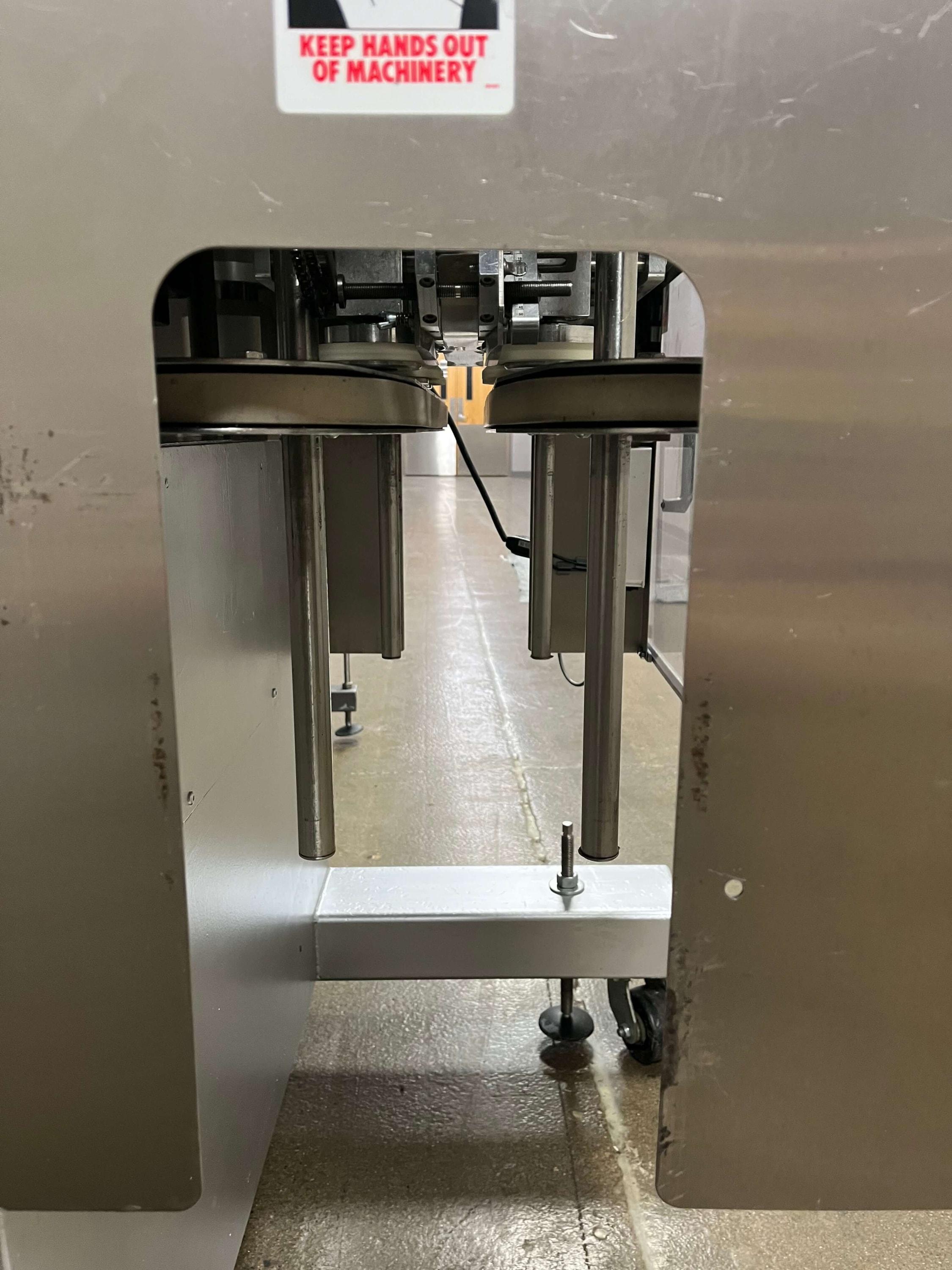

Kaps All Bottle Capper A6 and Cap Elevator FS-B

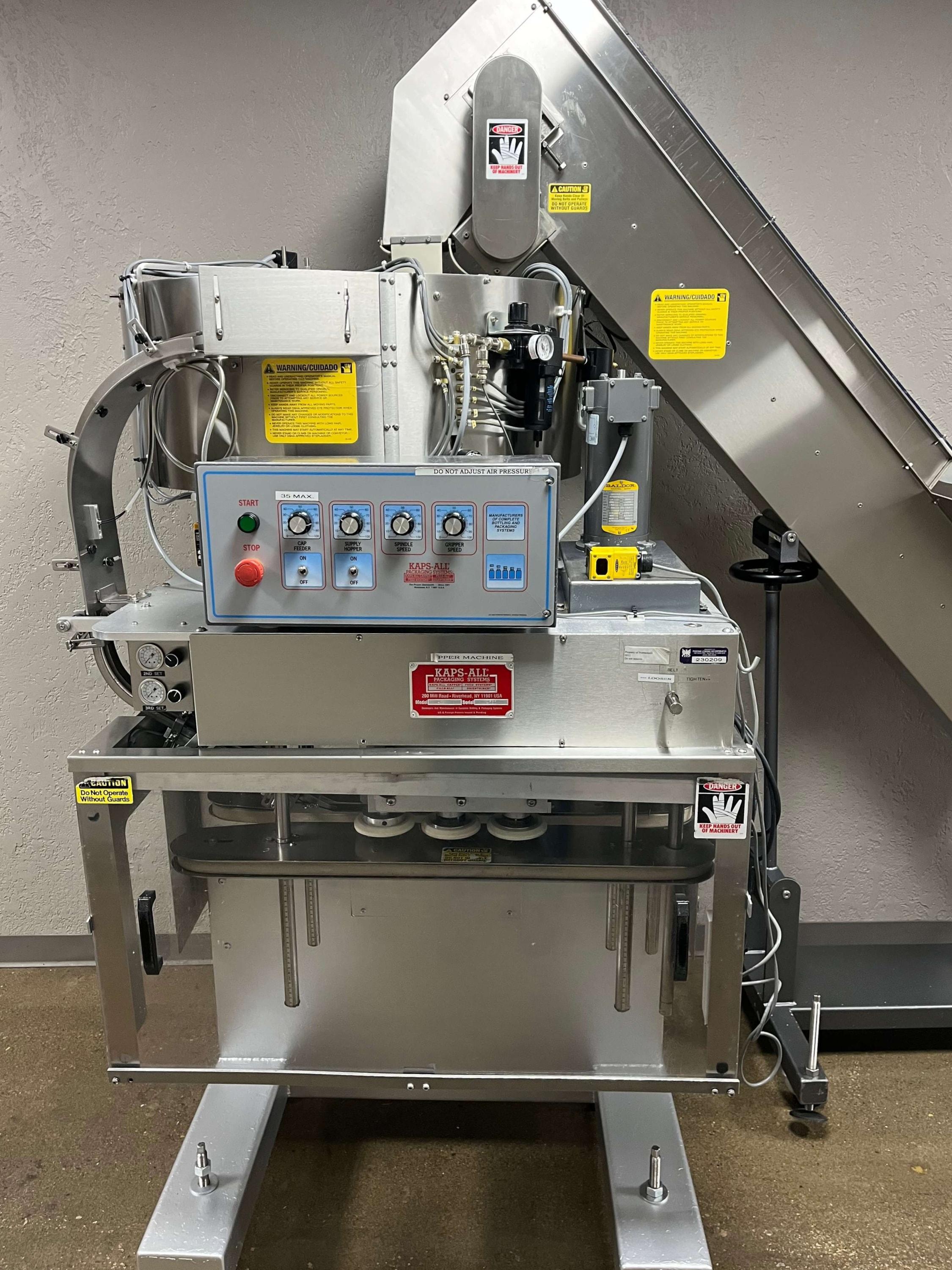

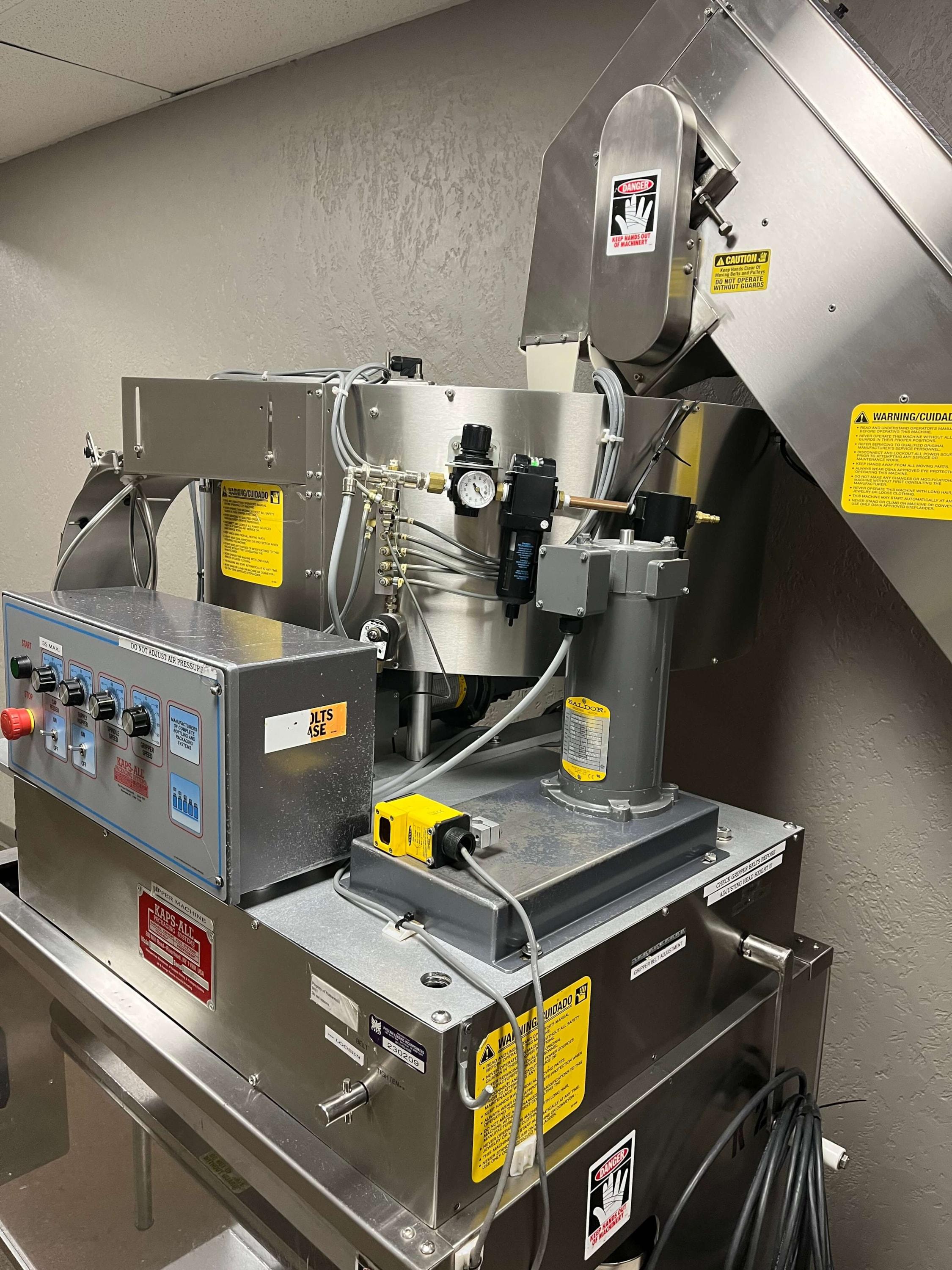

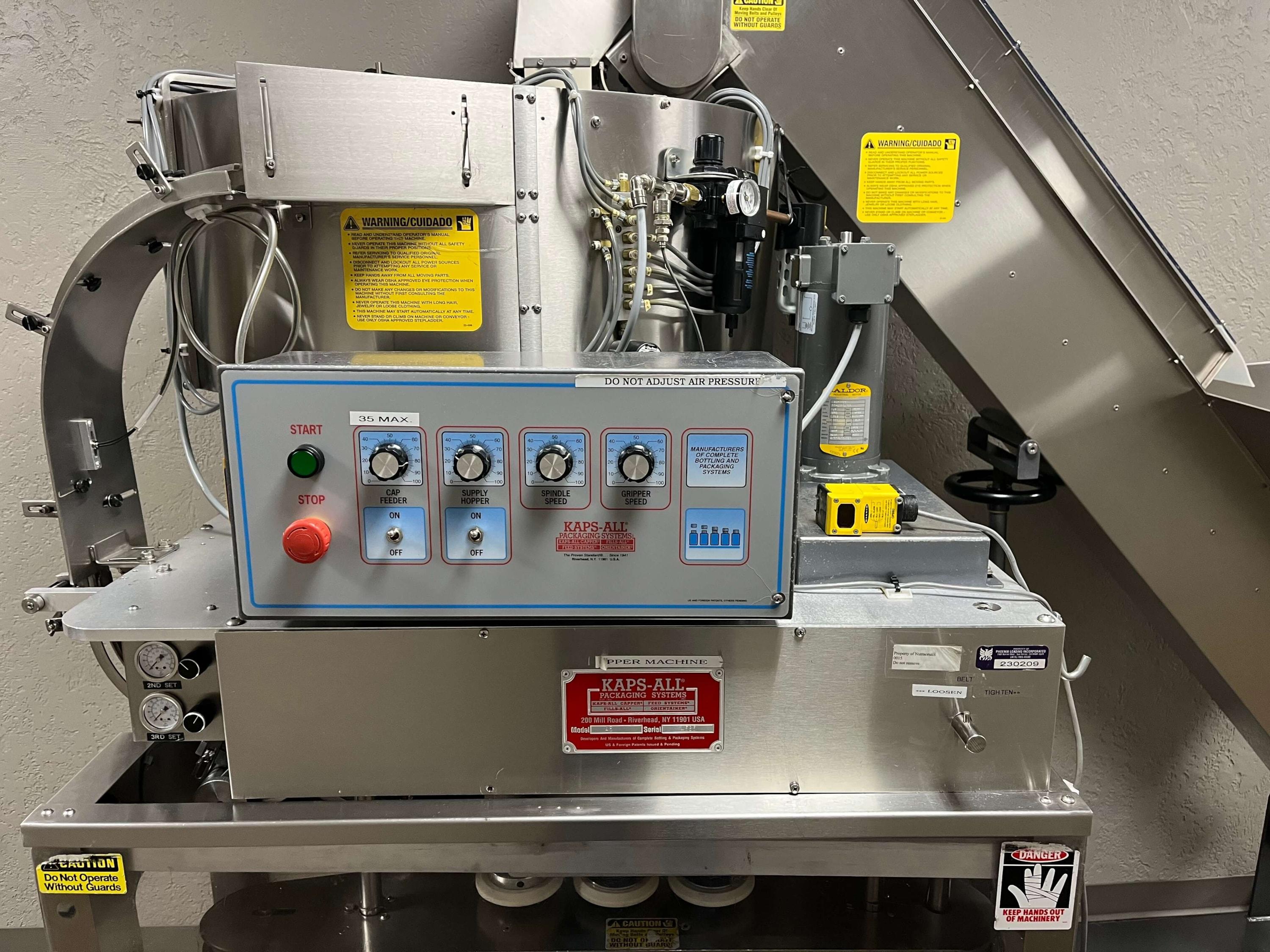

A6 Capper:
Manufacturer: Kaps All Packaging Systems Inc
Model: A6
Serial Number:4545
Dimensions: l 44" x w 43" h 75"
Fully functional capper with a fill rate 60-90 bottles per minute.
*Description from OEM Website:
Kaps-All Packaging Systems A6 6-Spindle Automatic Capper: A Comprehensive Overview
Our model A6 Portable 6 Spindle Capper is a paramount addition to any industrial packaging line. With speeds up to 200 BPM, this fully automatic capper is designed to handle screw caps of all materials and styles ranging from 8mm to 120mm. It's proficient in handling pilfer evident and child-resistant cap closures within a standard range of 13mm to 70mm, and is compatible with metal, glass, or plastic containers, from low jars and vials up to 2-1/2 gallons. Not only does it cap but also doubles as a cap and pump tightener. The A6 Capper comes with a standard rotary cap feeder, with an optional escalator cap feeder also available.
Superior Features
The A6 Capper is packed with standard features, all at no extra charge. These include a two-year full guarantee, a stainless steel 7’6” conveyor frame, a DC variable speed drive, a 4 1/2” wide Delrin chain, and stainless steel pins. The machine is enveloped in a stainless steel enclosure with Lexan doors on the front and back, enclosing the spindle and gripper section down to the conveyor. No changeover parts are required for a broad range of standard cap sizes and container shapes, ensuring easy adaptation to any production line. The A6 Capper also boasts of a stainless steel 3.5 cubic foot cap supply hopper and a stainless steel guarding of the upper spindle section.
All the key machine elements, from bottle gripper belt housings, spindle shafting to multiple disc adjustable torque clutches, are designed with stainless steel. To ensure optimal flexibility, the A6 Capper is portable on four swivel wheels and features a solid one-piece welded construction cabinet painted white epoxy for both cleanliness and easy maintenance.
Optional Features
To further enhance its performance, the A6 Capper can be equipped with an array of optional features. These include a 36” rotary cap feeder, stainless steel frame and cabinet, nickel or chrome-plated visible painted surfaces above the conveyor, and an EM-980 Electronic Torque sensor. Other options include a mini-L stainless steel low profile hopper/elevator, a stainless steel bulk elevator, and conveyor extensions.
Ideal for a Variety of Applications
The A6 Capper shines in various packaging applications. Whether you're capping vials or large 2-1/2 gallon containers, the A6 Capper guarantees optimal performance. Its versatility is well-suited for caps of all materials ranging from 8mm to 70mm, and can effectively work at speeds up to 300 bottles per minute.
Technical Specifications
In terms of power requirements, the A6 Capper operates at 220V, 3Ph 50/60Hz (NEMA 12), and requires an air supply of 2 to 4 cubic ft/min. The base machine measures 38” in dimensions, while the crated dimension is 8' L x 4' W x 6' 8" H and weighs around 1300lbs when crated.
The A6 Capper - A Blend of Efficiency and Precision
With a reputation for durability, efficiency, and precision, the A6 Capper is a reliable solution for all your capping needs. Contact Kaps-All Packaging Systems today to learn how the A6 Capper can enhance your production line's efficiency and reliability.

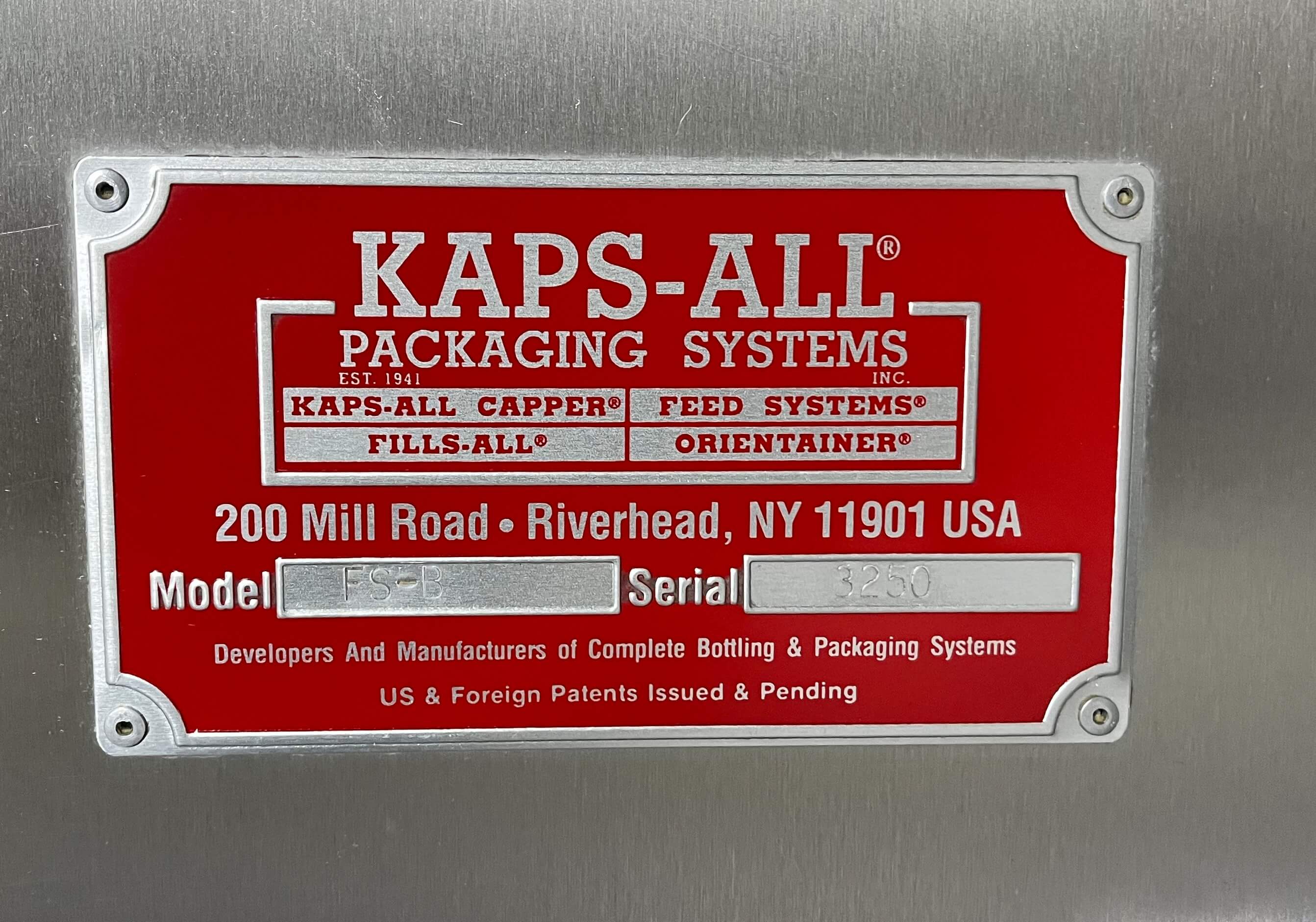

FS-B Cap Elevator:
Manufacturer: Kaps All Packaging Systems Inc
Model: FS-B
Serial Number:3250
Dimensions: l 88" x w 30" h 86"
*Description from OEM Website:

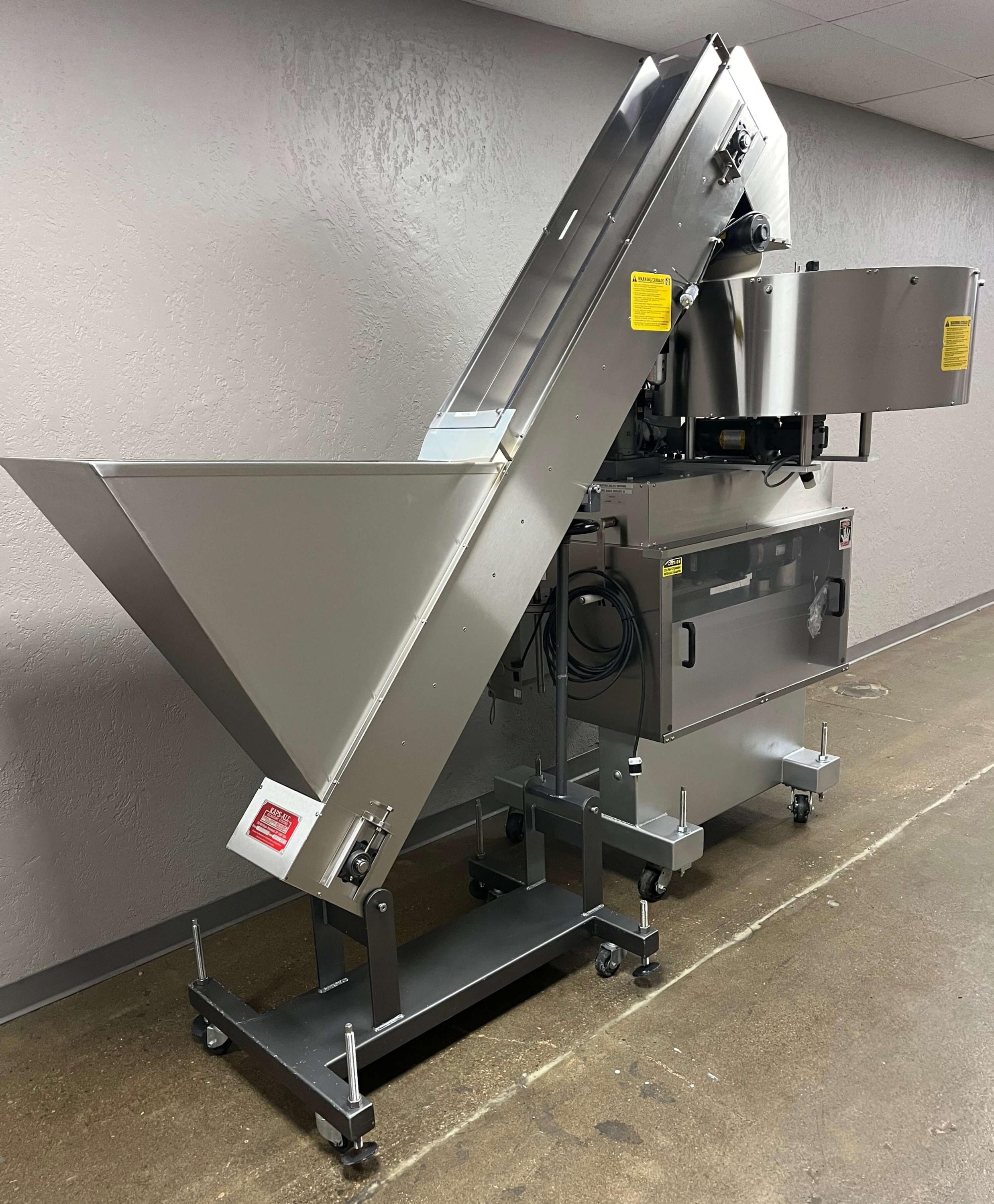

FS-B Automatic Bulk Parts Elevator Hopper
Welcome to the Kaps-All Packaging Systems FS-B, your ultimate solution for the feeding of Caps, Plugs, Dip Tubes, Aerosol Valves, Pumps, Bottles, Jars, and similar parts. The FS-B Automatic Bulk Parts Elevator Hopper has been specially designed to provide efficient, gentle, and reliable parts handling.
Built with Endurance in Mind
Every element of the FS-B Bulk Parts Elevator Hopper, from its stainless steel chassis, hood, and guards to its heavy-duty construction, showcases our commitment to enduring quality. Despite the robustness of its build, this machine stands out for its cost-efficiency. The machine is also low maintenance, thus eliminating the need for skilled personnel, further reducing operational costs.
Exemplary Standard Features

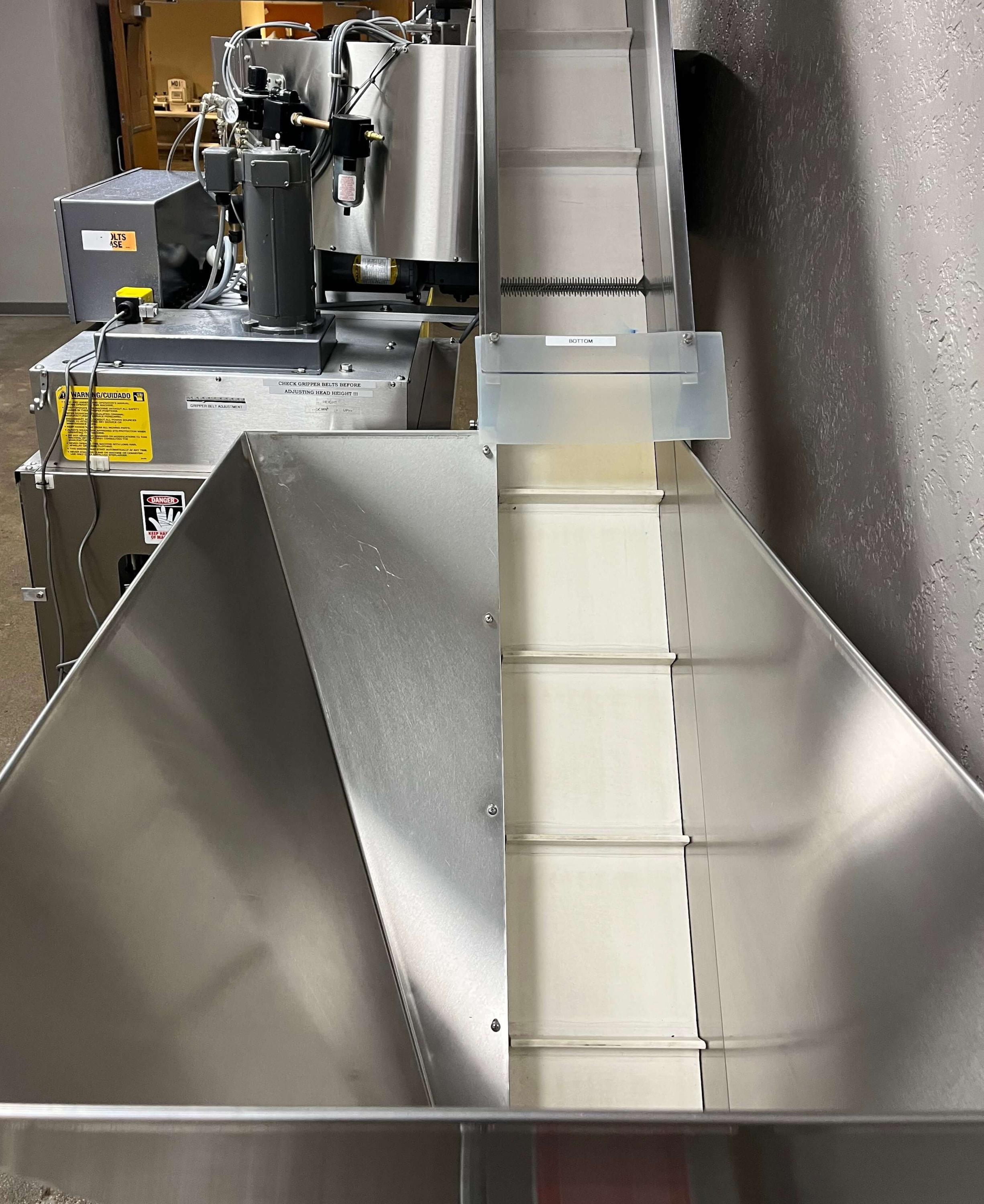

The FS-B comes with a generous five cubic foot capacity stainless steel hopper and FDA and USDA approved belting with molded cleats, perfect for any industry adhering to stringent standards. An electronic variable speed drive with dial control ensures precise operation, while the clear polycarbonate dust cover over the inclined belt keeps dust at bay. With a wide range of height adjustments and a compact design that is perfect for restricted ceiling heights, the FS-B offers versatility that fits every workspace.
Mobility and Convenience
With the adjustable stainless steel leveling screws and floor pads, our FS-B Automatic Bulk Parts Elevator Hopper stands stable in stationary operation. However, should there be a need for movement, it can be easily moved from one position to another, thanks to the optional stainless steel mobile base and heavy duty swivel casters.
Extended Options for Customizability
Your operation is unique, and we understand that. That's why the FS-B is available with several options like hazardous location controls, special electrical requirements, hinged hopper covers, or increased capacity hoppers. It can be customized with clean-out doors on the hoppers and special discharge heights to match your specific needs.
Smooth Integration and Standalone Operation
Whether you're seeking to integrate the FS-B into existing KAPS-ALL machines or use it as a standalone unit, it will seamlessly fit into your operation. The FS-B is designed for compatibility and flexibility, enhancing your workflow no matter its configuration.
Air-Electrical and Size Information
The FS-B is available in both 110v AC, 1Phase, 50/60 hertz and 220v AC, 1 phase, 50/60 hertz, and it doesn't require any air to operate. The machine is compact with a crated weight of 350lbs and shipping measurements of 8’x4’x4’.
Take a step toward efficiency and reliability by choosing the FS-B Automatic Bulk Parts Elevator Hopper by Kaps-All Packaging Systems.
