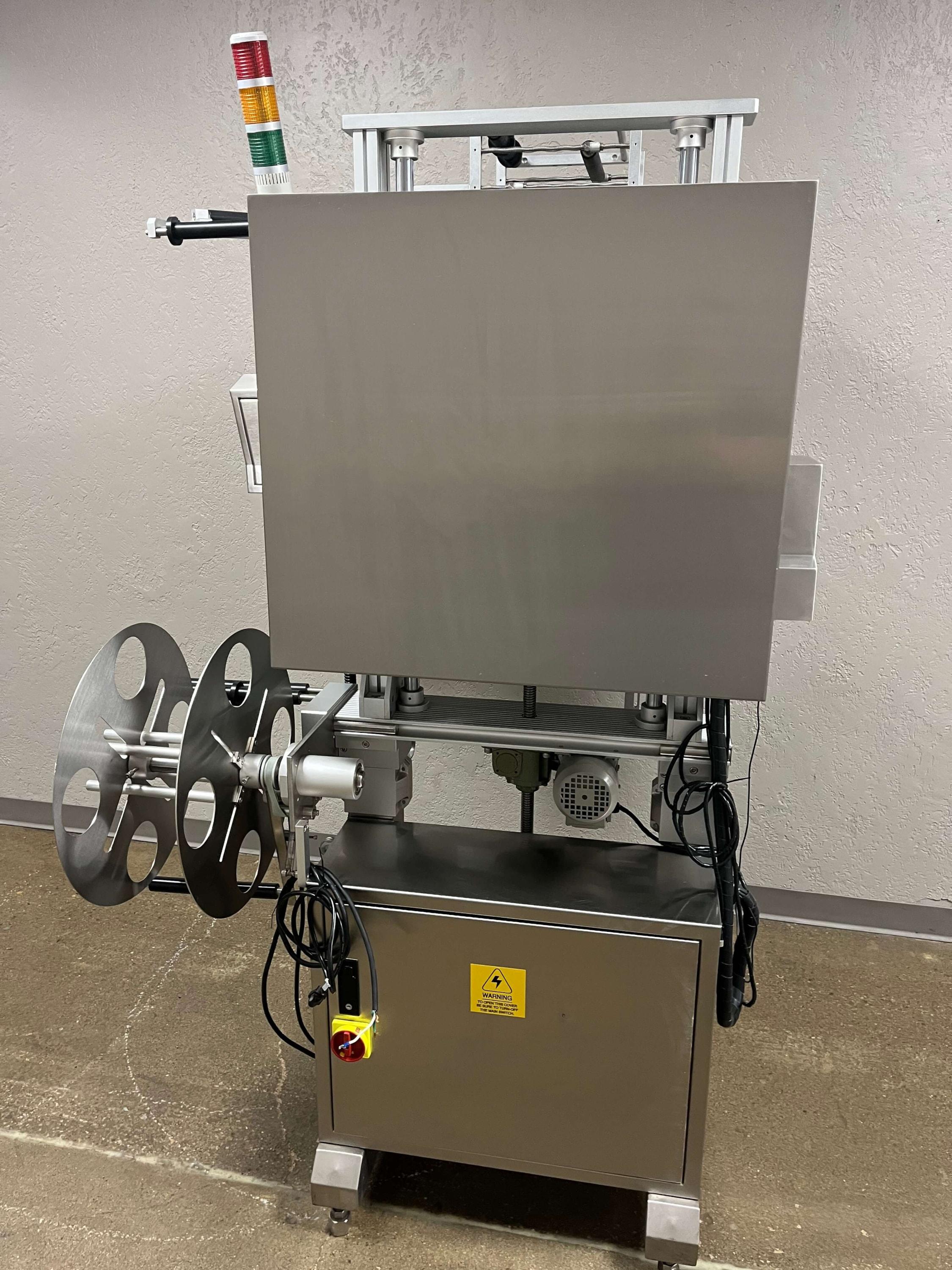

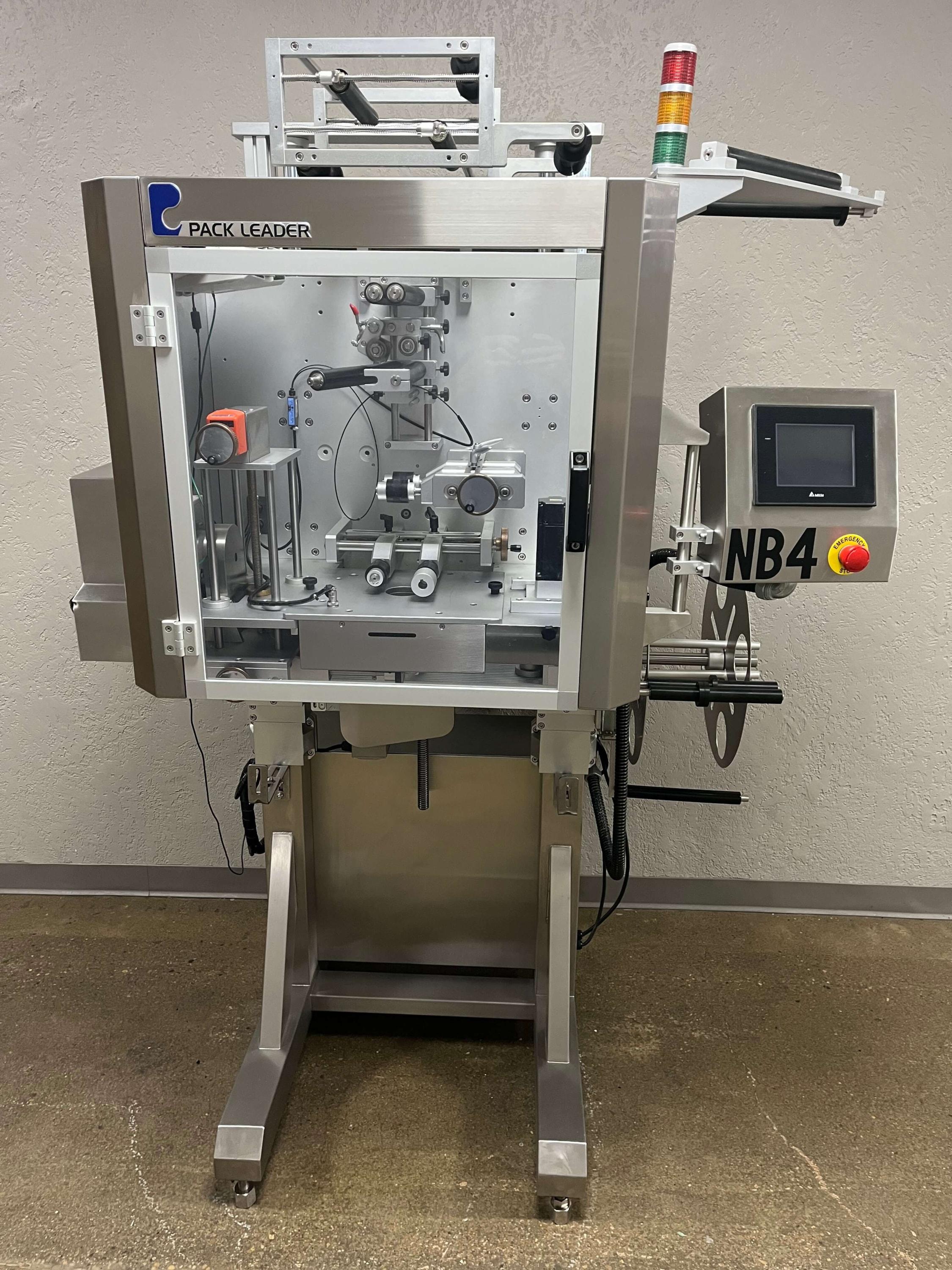

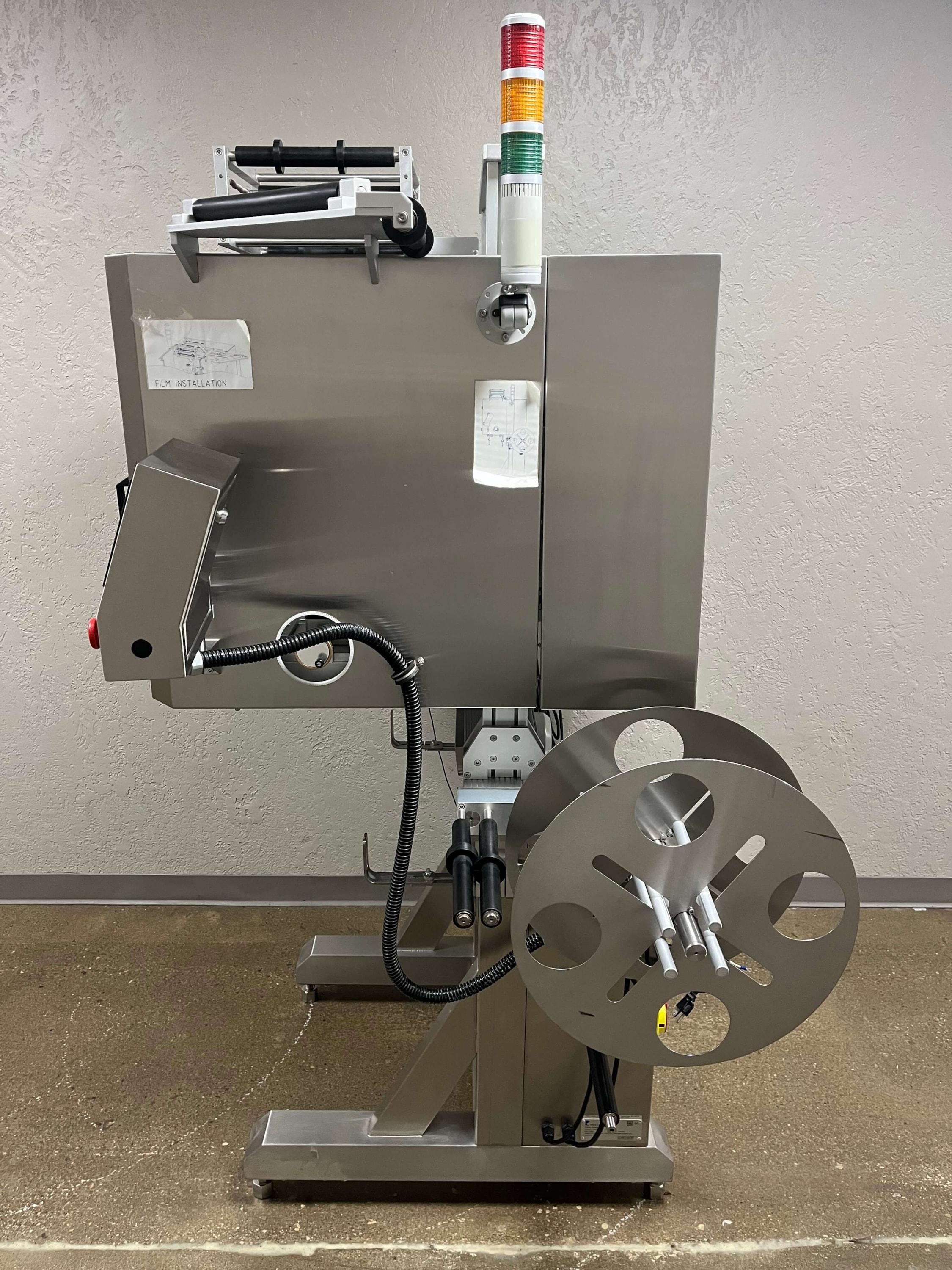

Pack Leader SL-10 Shrink Sleeve Labeler
Pack Leader’s series of high-speed shrink sleeve labeling machines is designed for full body sleeve labeling applications, as well as neck and cap banding, tamper-evident applications. With the Pack Leader shrink sleeve labeling models differing only in size and labeling speed, the SL Series is well-suited for a wide variety of industries and applications, although the machines’ tamper-resistant “neckbander” is ideal for beverage, pharmaceutical and cosmetic companies.
Label Type
Full Body Sleeve
Optional Neck and Cap Banding
Tamper Evident
Speed
Maximum Sleeve Speed :200BPM (based on cut length)
Dimensions
Machine Dimensions L-W-H: 44” x 48” x 80” (1118mm x 1219mm x 2032mm)

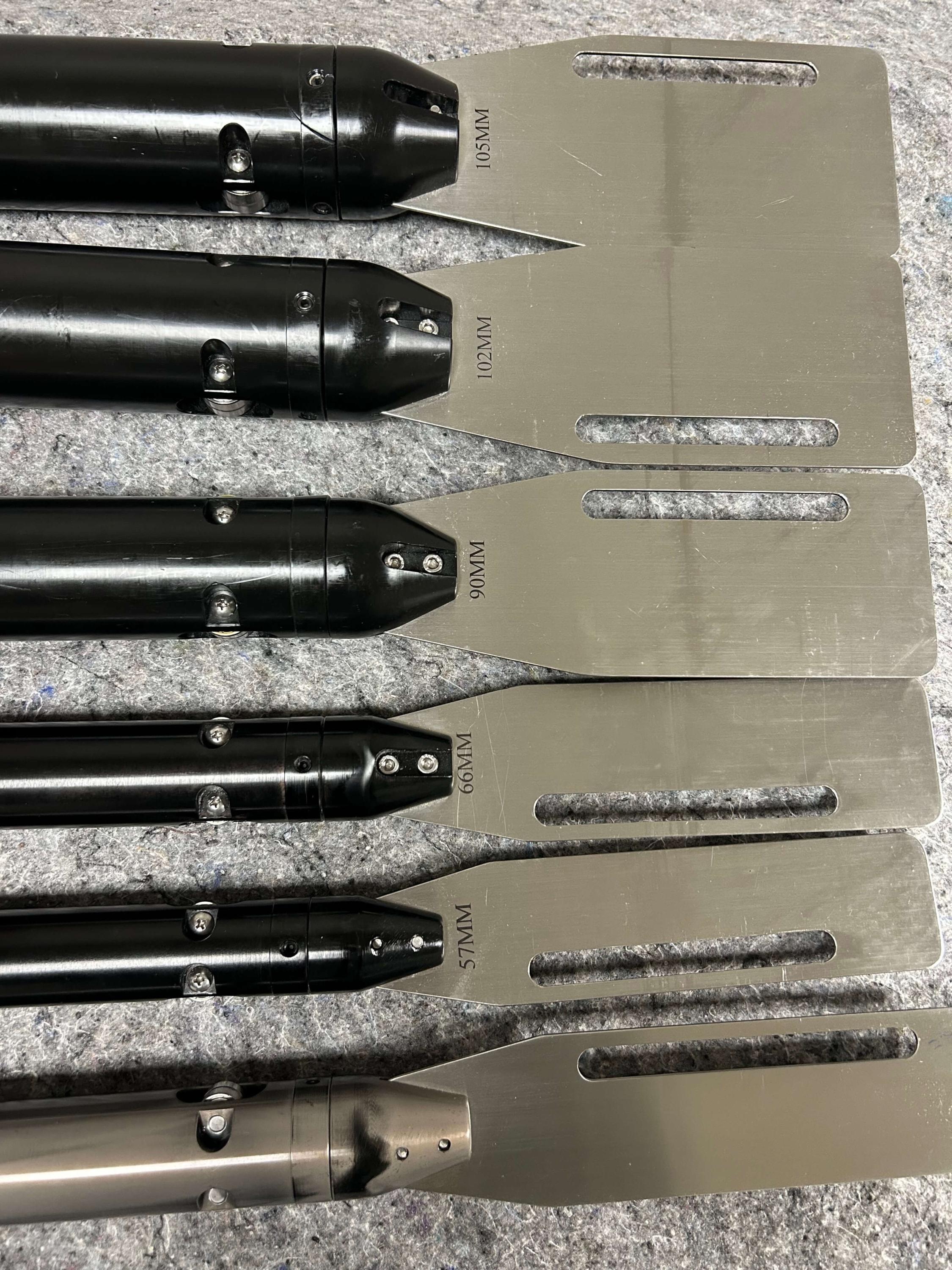

Sleeve Length: .87”-9.84” (22mm-250mm)
Range of Container Diameter: .87”-4.92” (22mm-125mm)
Range of Container Height: 1.38-13.78” (35mm-350mm)
Spool Inner Core: 5”-10” (127mm-254mm)
Film Length: 4.72” (120mm)
Film Thickness: .001”-.003” (.045mm-.08mm)
Power

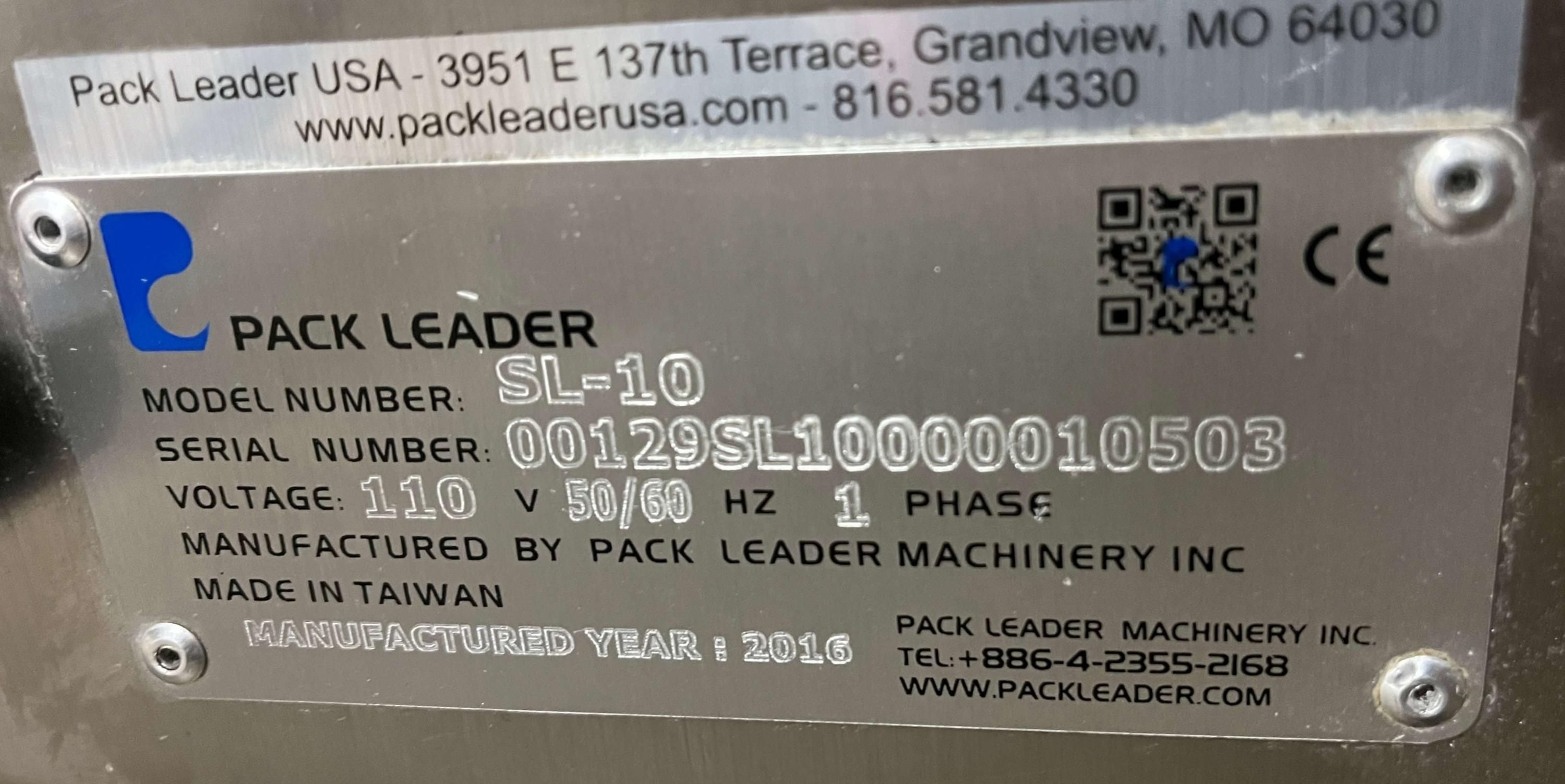

Voltage: 110/220VAC 50/60HZ 1 Phase 20AMP Dedicated
Power in KW: .900

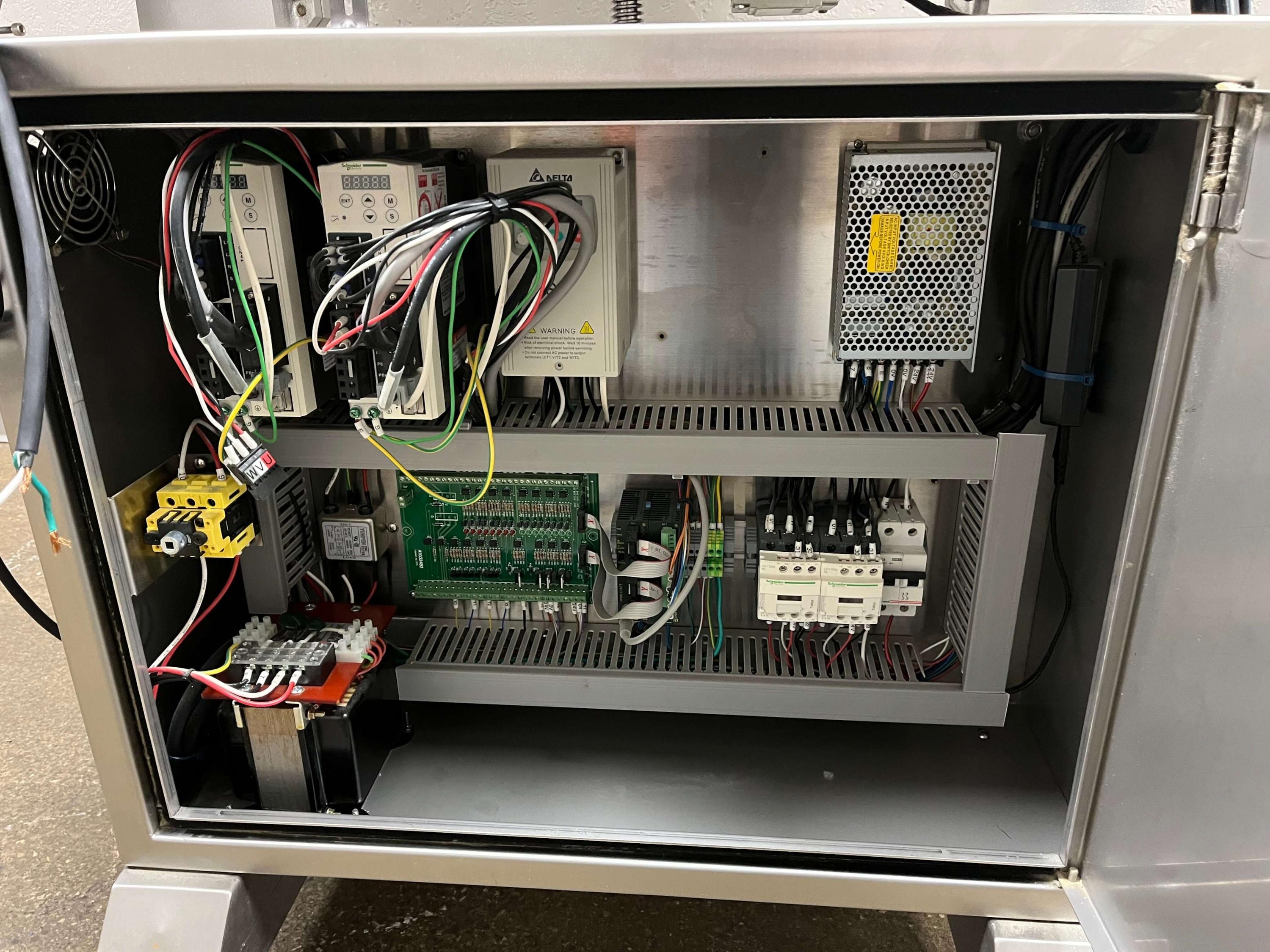

PLC: Panasonic FP0R

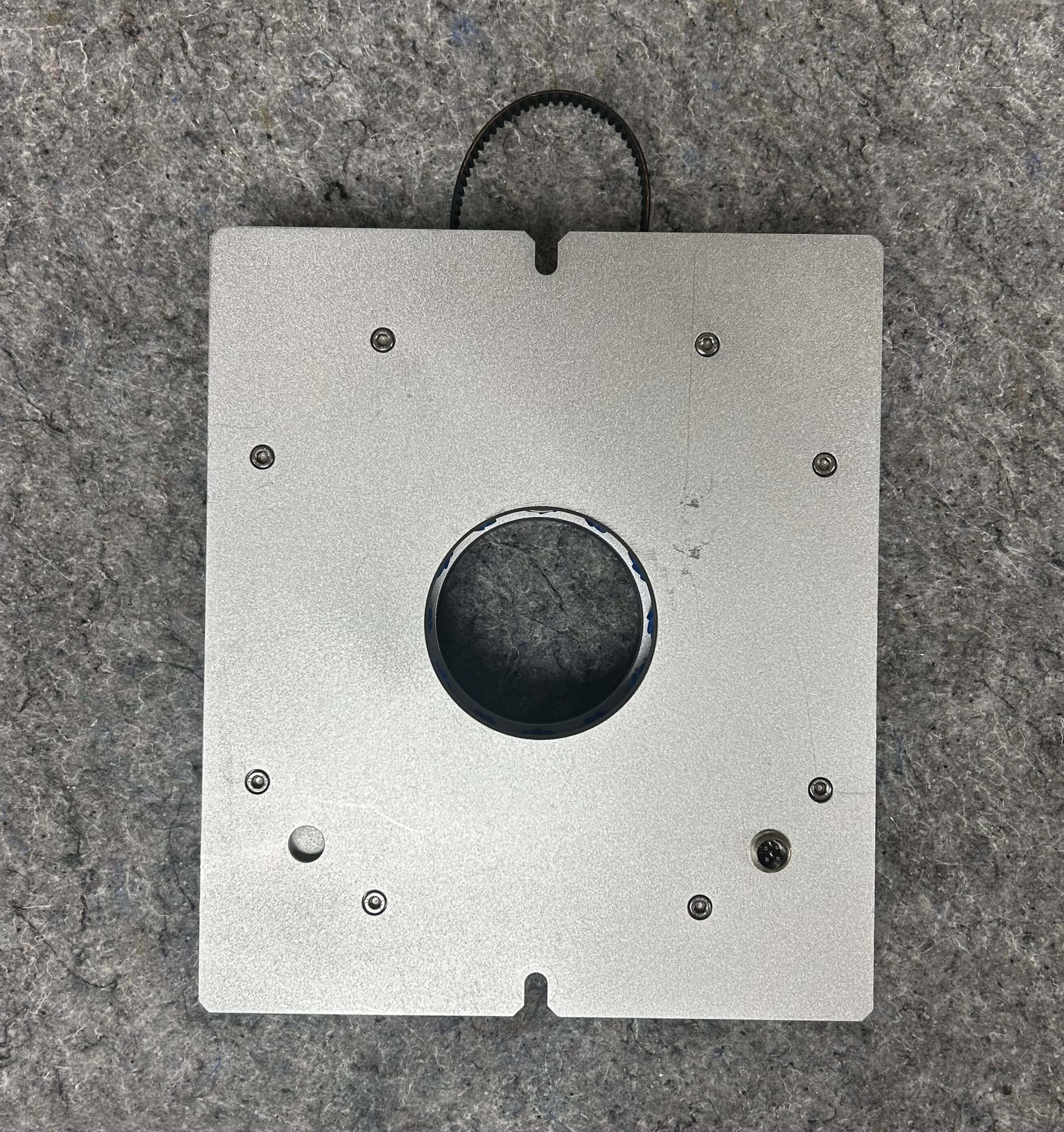

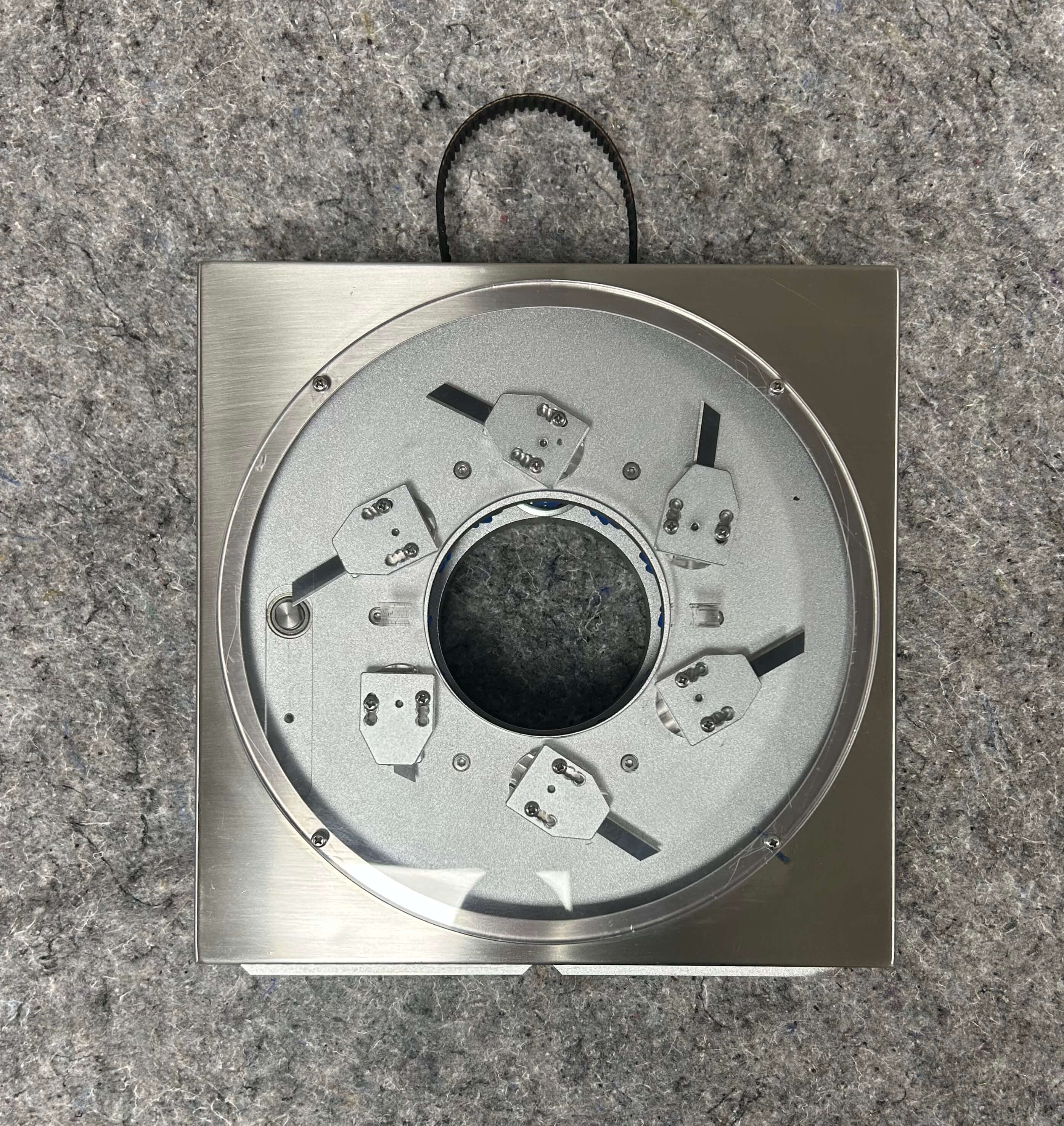

Cutter Plate: 4 blades – .87”-2.36” (22mm-60mm), optional 6 or 8 blade

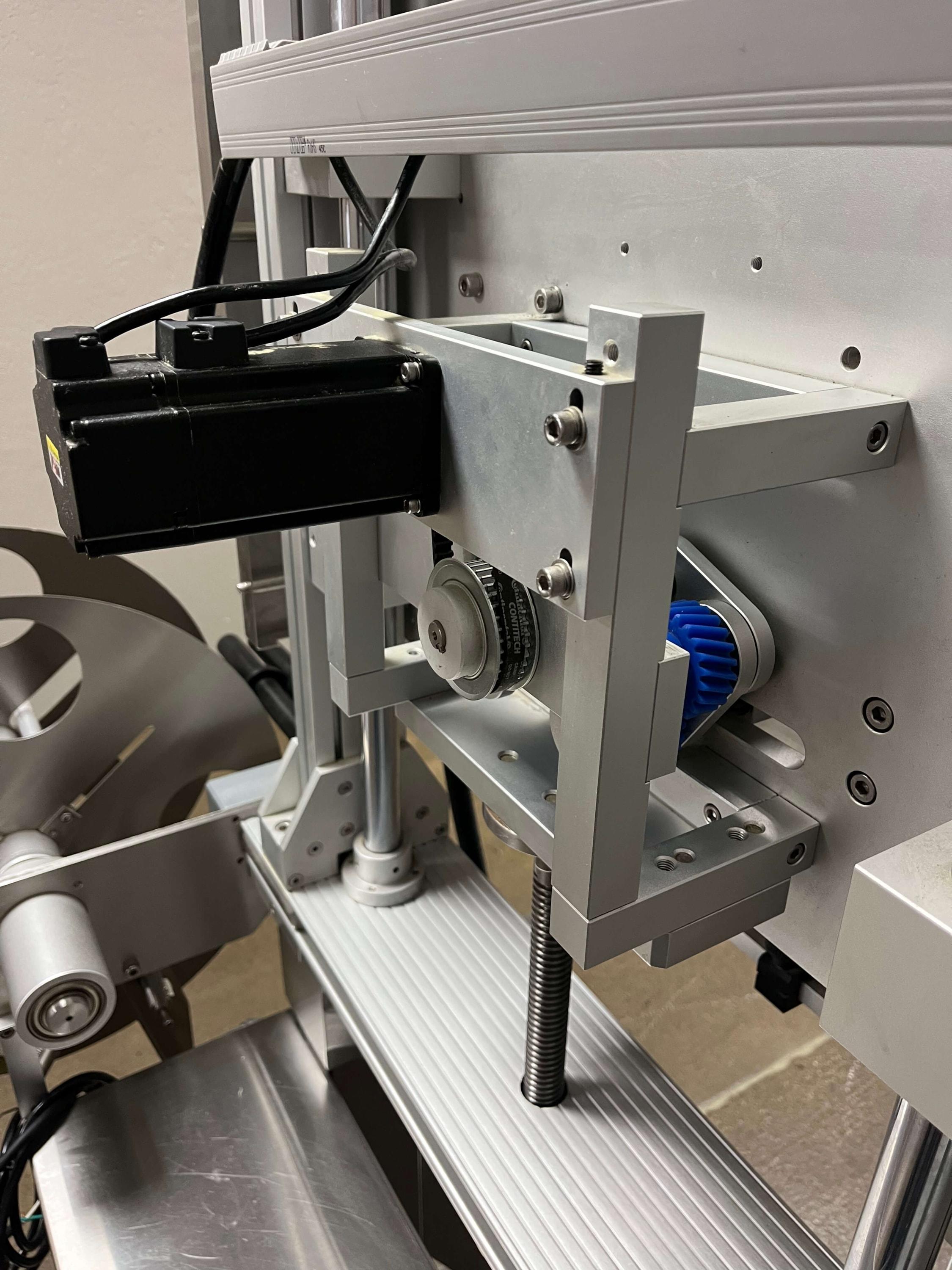

Drive: Stepper Motor
