Quadrel VersaLine Labeling System

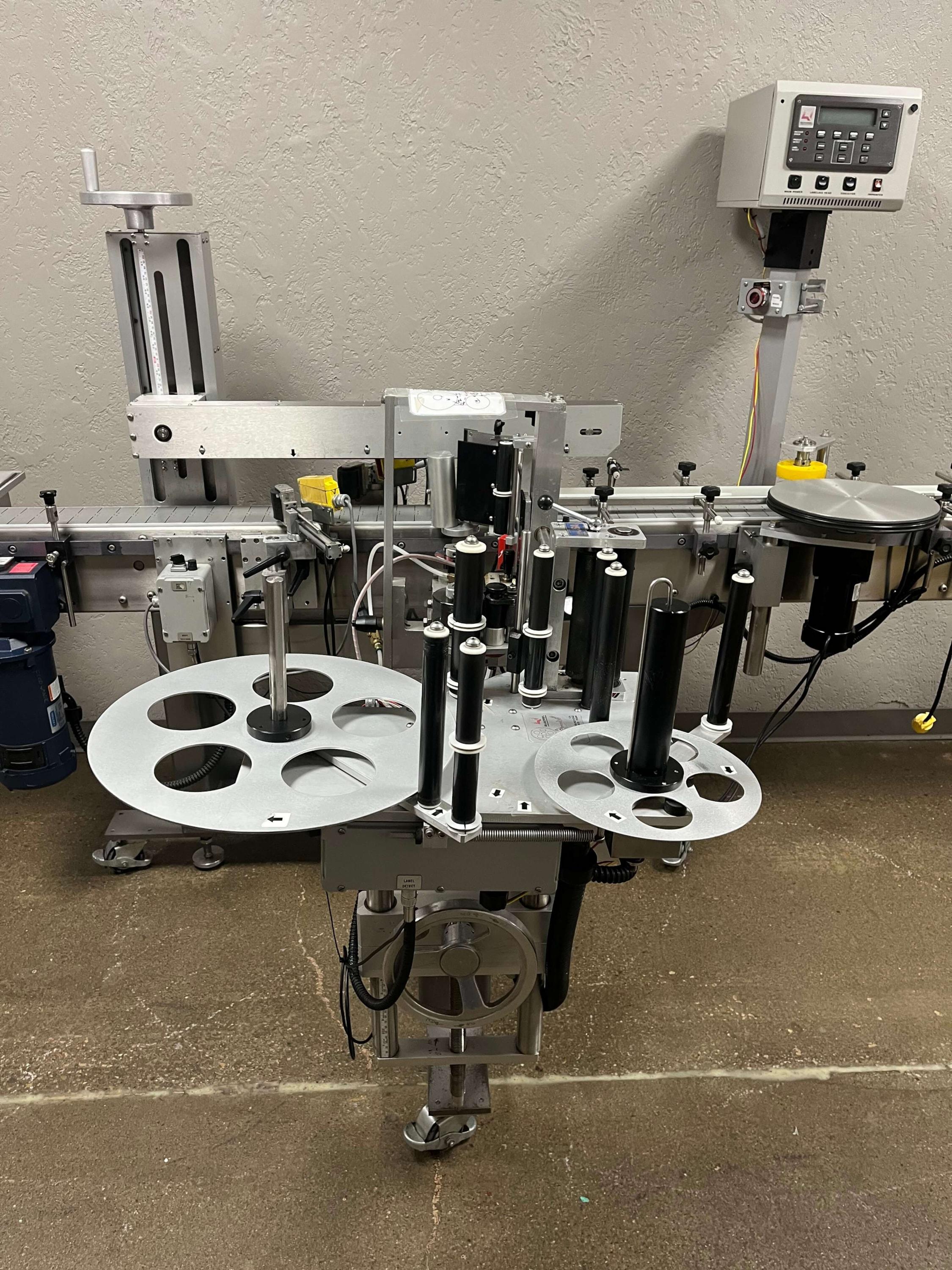

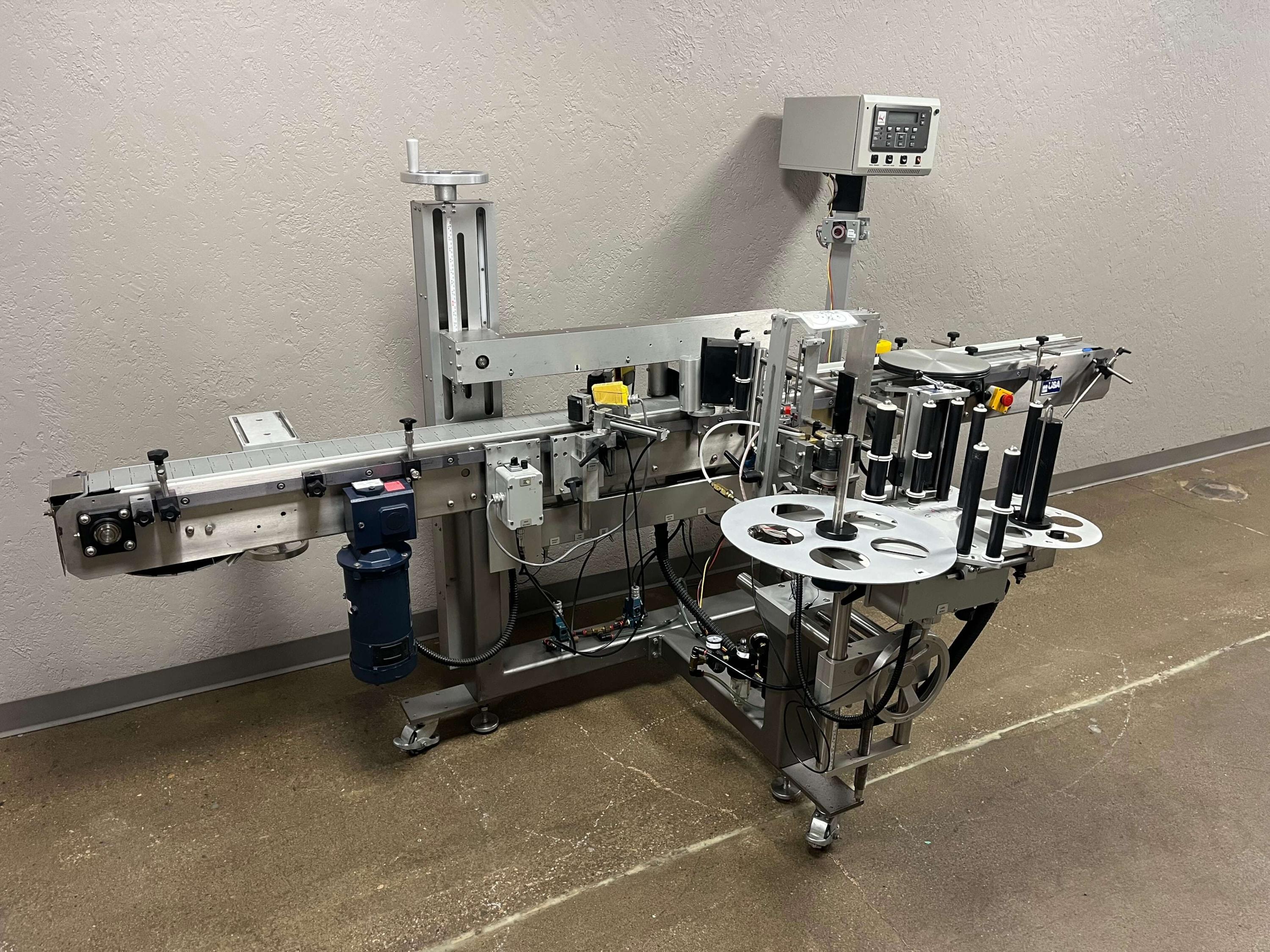

VERSALINE - Vertical Roller Labeling System
The Q60 has been developed as a heavy duty automatic labeling head system for integration into high speed, high rate production environments. The labeling head can be configured for either wrap or wipe applications. The Q60 labeler features the M2 microprocessor control, insuring accurate and drift free label application. The Q60 uses a high-torque stepping motor for web drive. The step motor drive system is indexed directly from the M2 controller. This allows for precise adjustment and calibration for any number of applications. In addition, a built in system of fault logic can easily interface with a host of optical sensors.
This high speed labeling system speeds from 200 to 250 ppm. Unlike conventional wrap systems, this vertical roller system uses 4 points of bottle contract to square and align the surface of the container to minimize label spirals. Production rates up to 250 ppm with a +/- 1/32” accuracy are possible with this system.
ADDITIONAL DETAILS:
Model #Q60
Stainless Construction

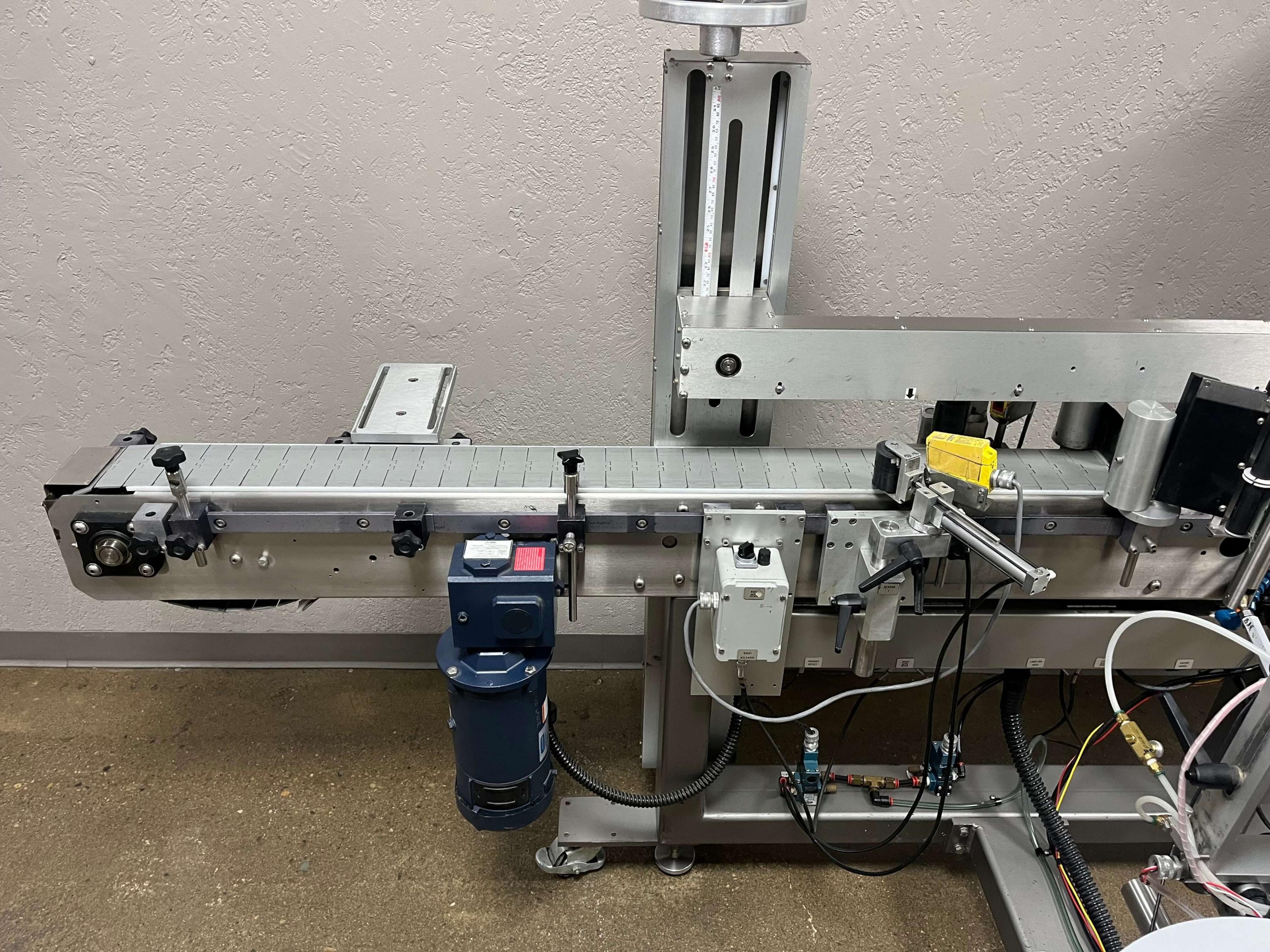

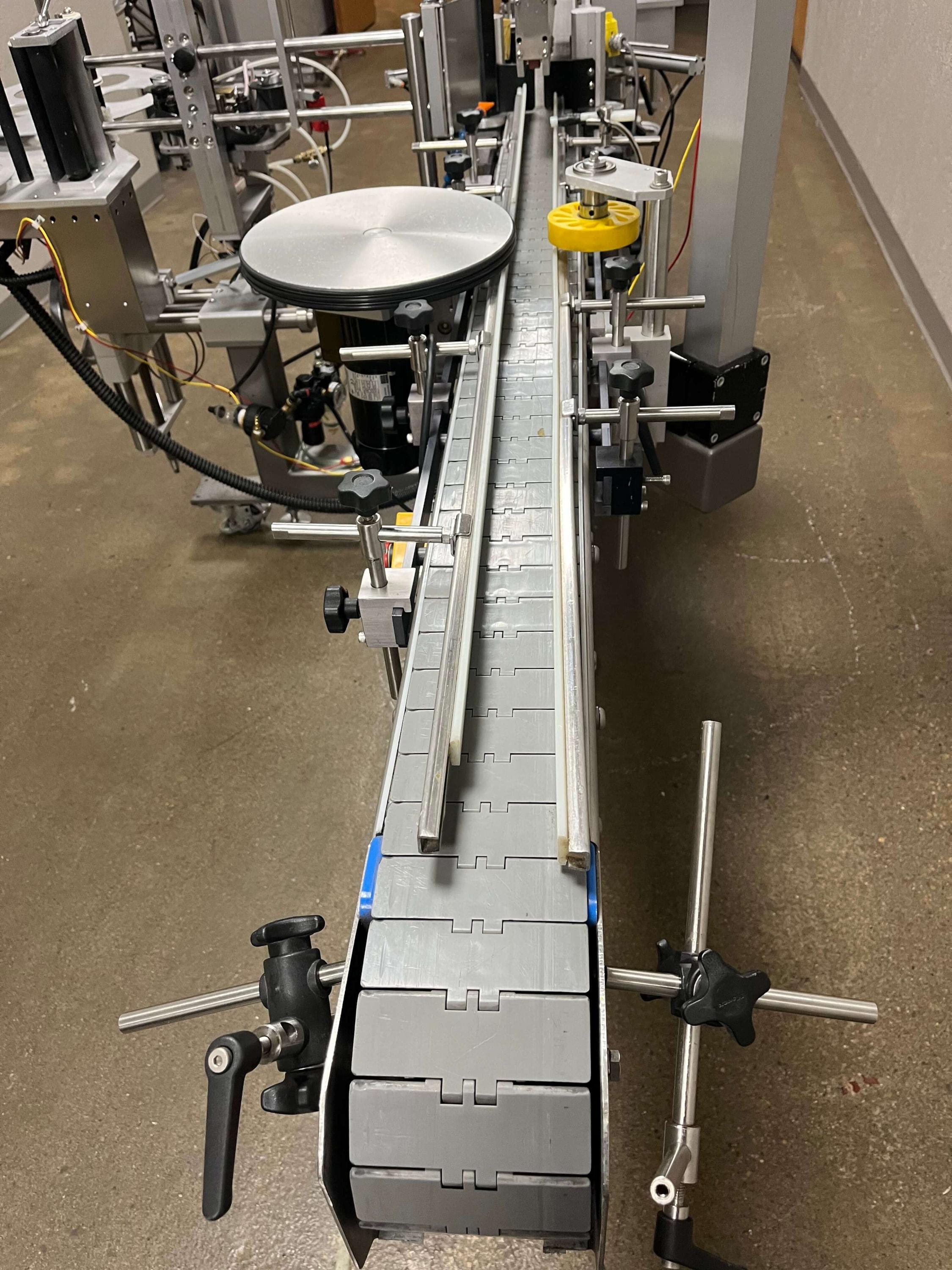

4.5” x 10’ Long Powered Conveyor
Rated at 150+ CPM; According to Product Specifications
5” Max label height
4.5" Peel Plate
LION 2100 Clear or Opaque Label Detection

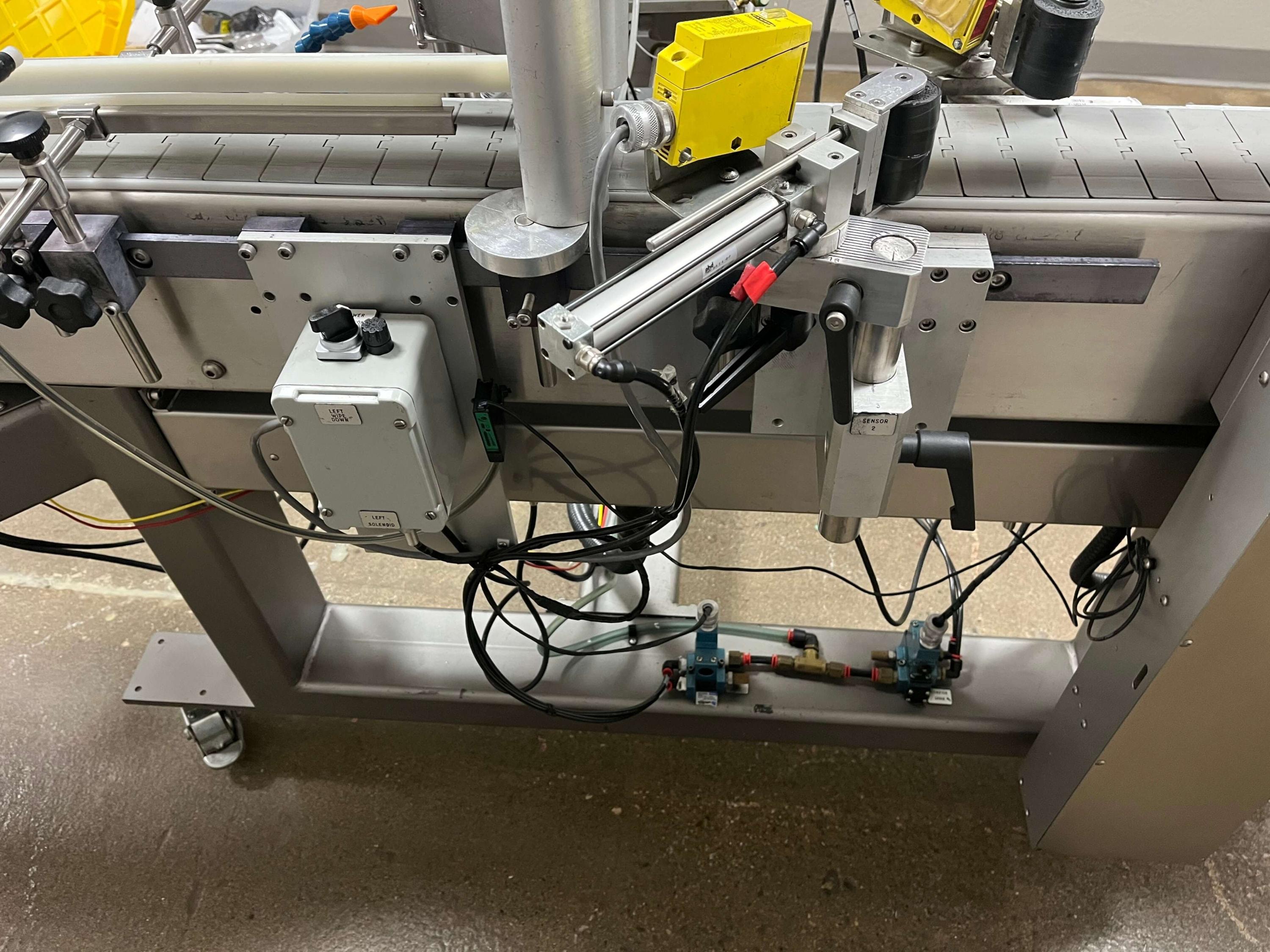

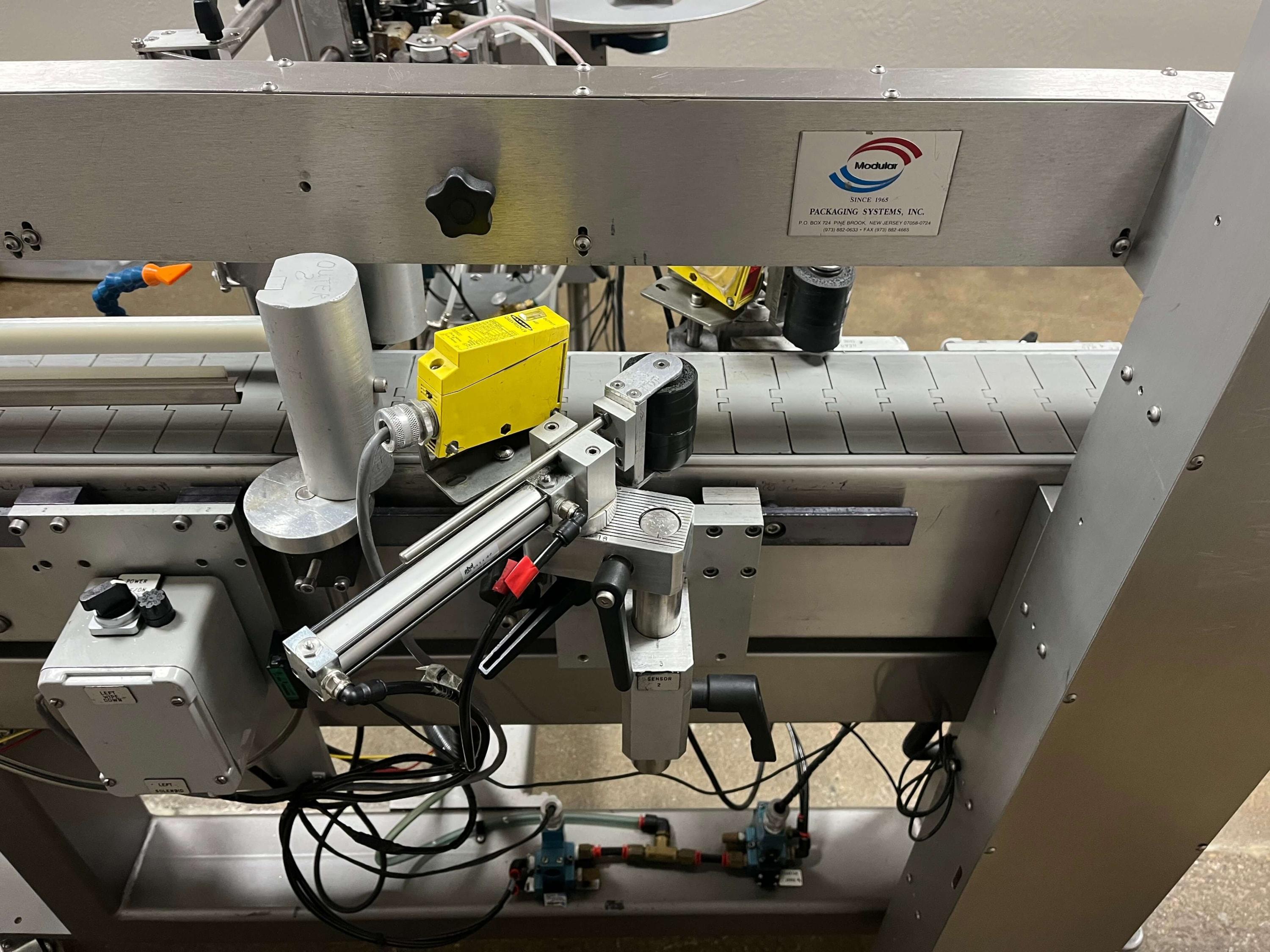

Product Photo-Eye Detection
Low Label Detection
Broken Label Web Detection

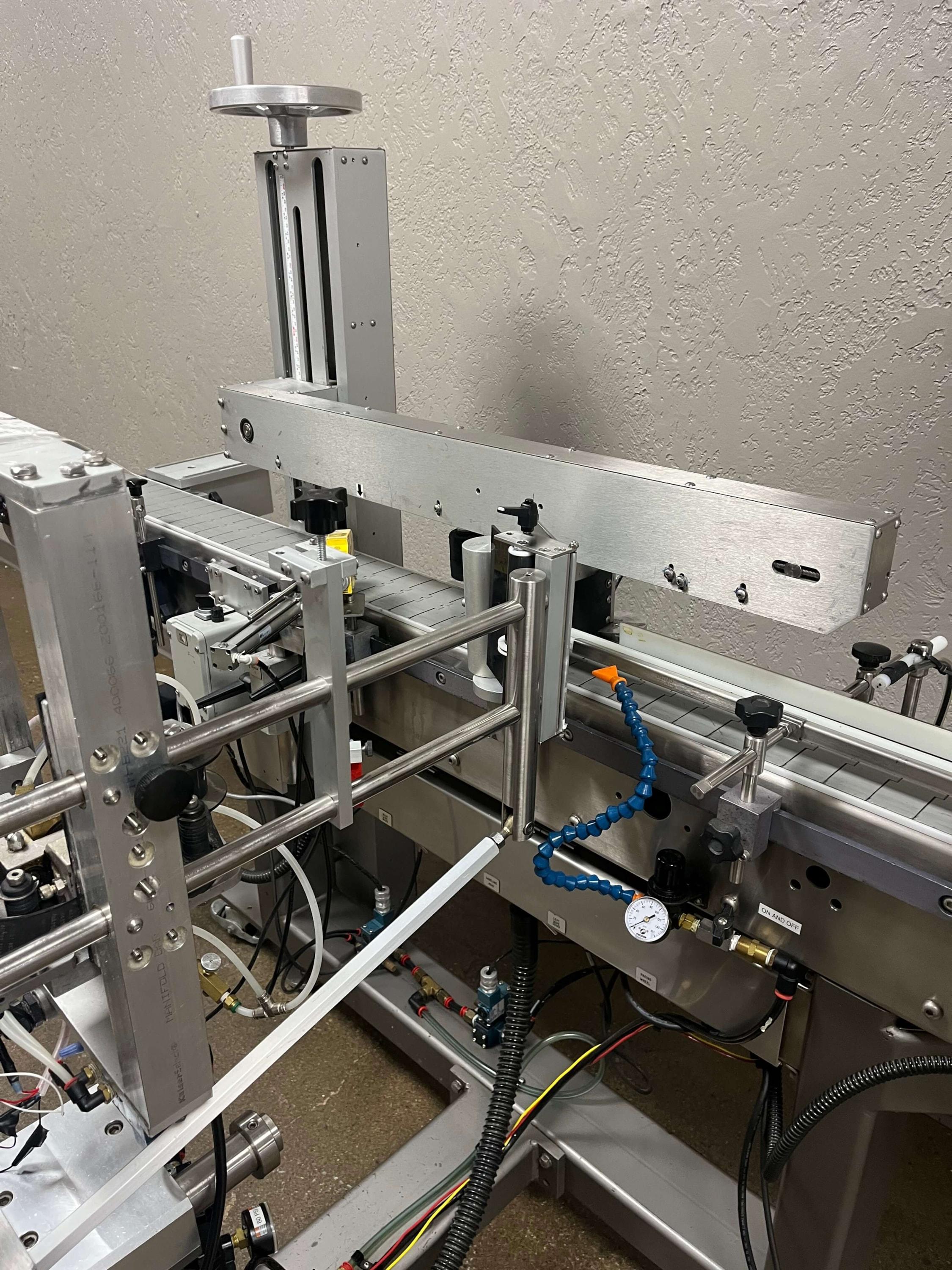

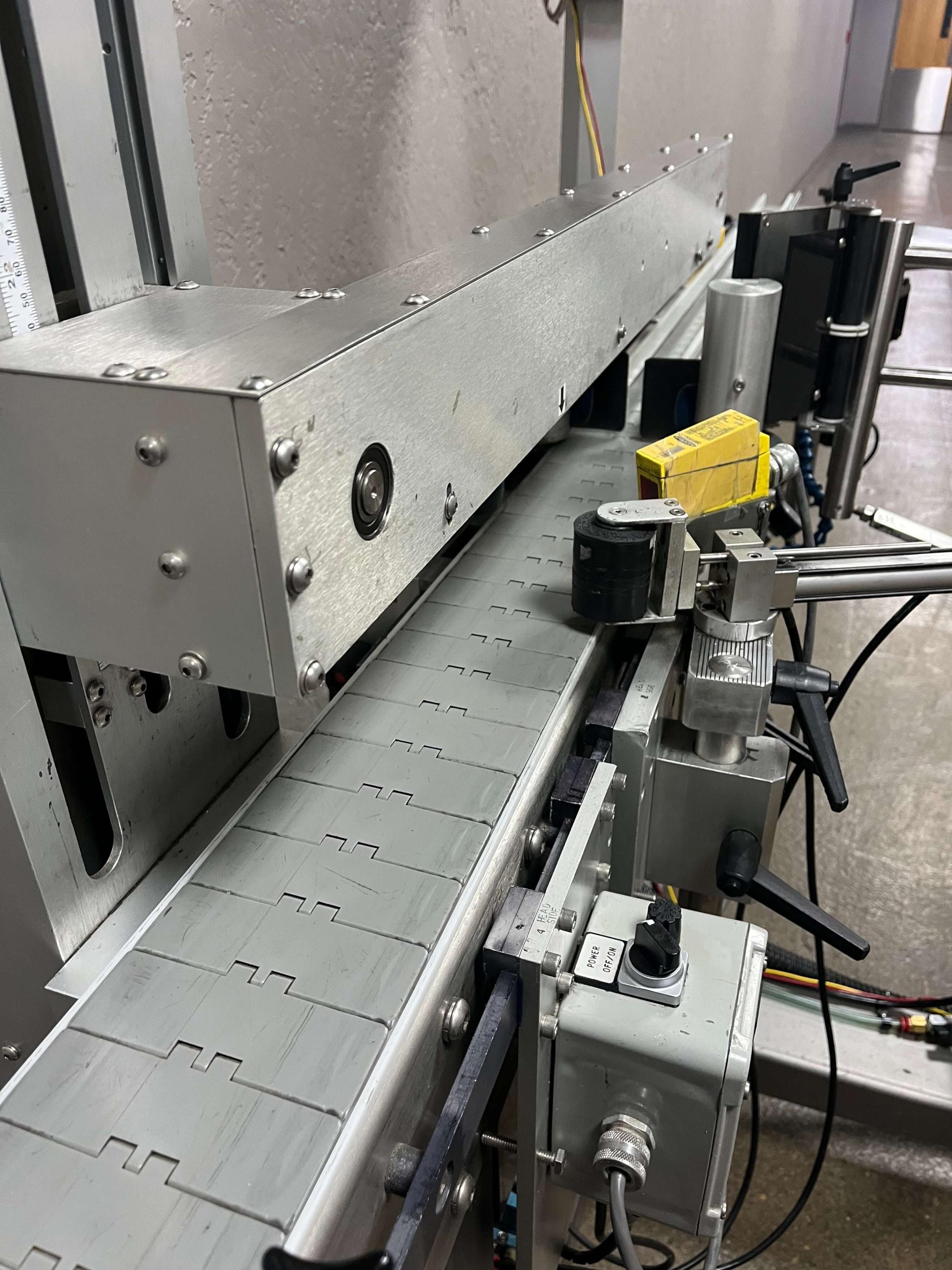

Top Hold down belt
20” Wrap Belt
Pivoting Peel Plate
Back Pressure plate
Indexing Wheel
16” Label Reel with 3” Core
Adjustable SS Side Rails
Casters
SS Floor Levelers
E-Stop

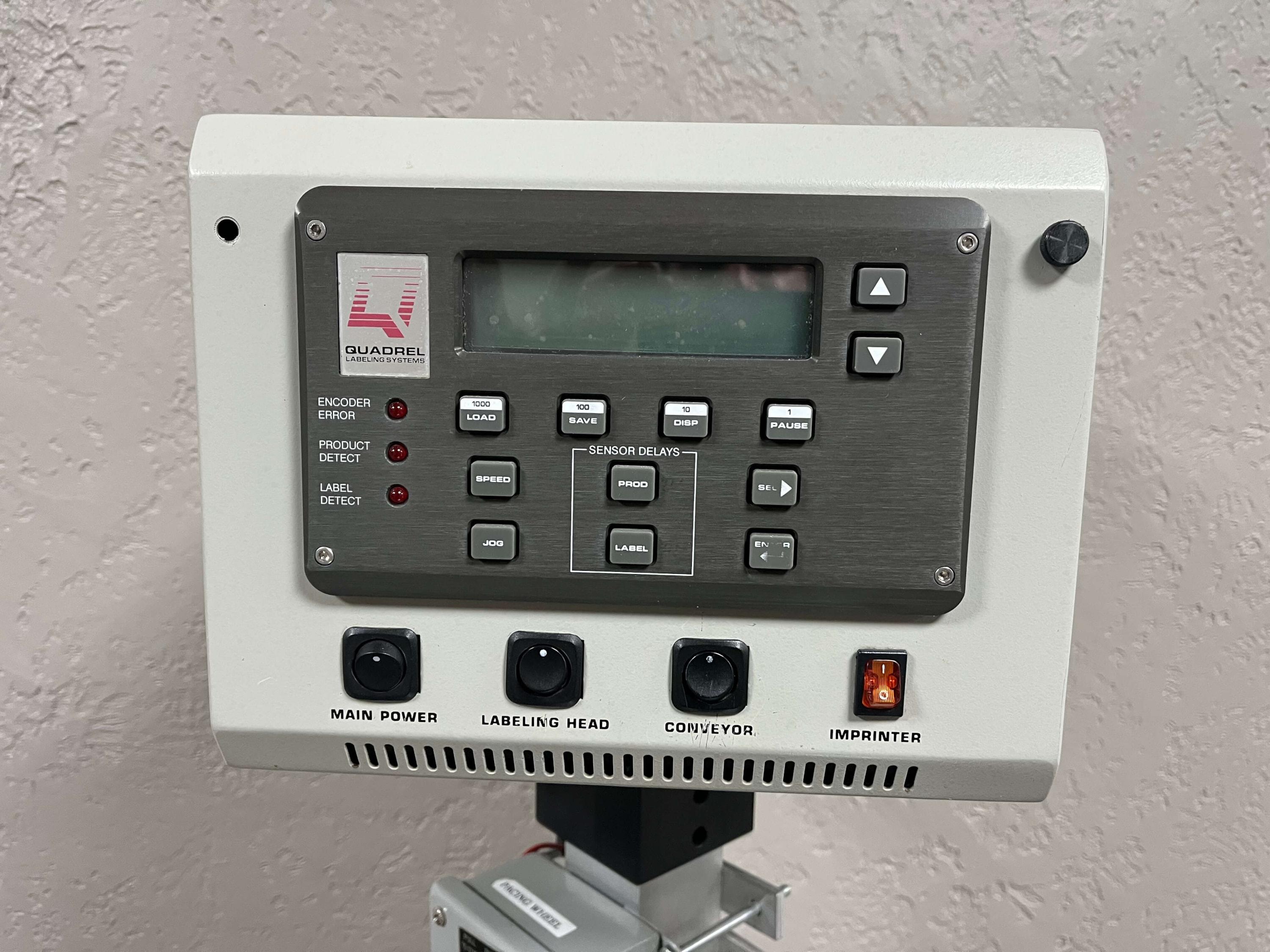

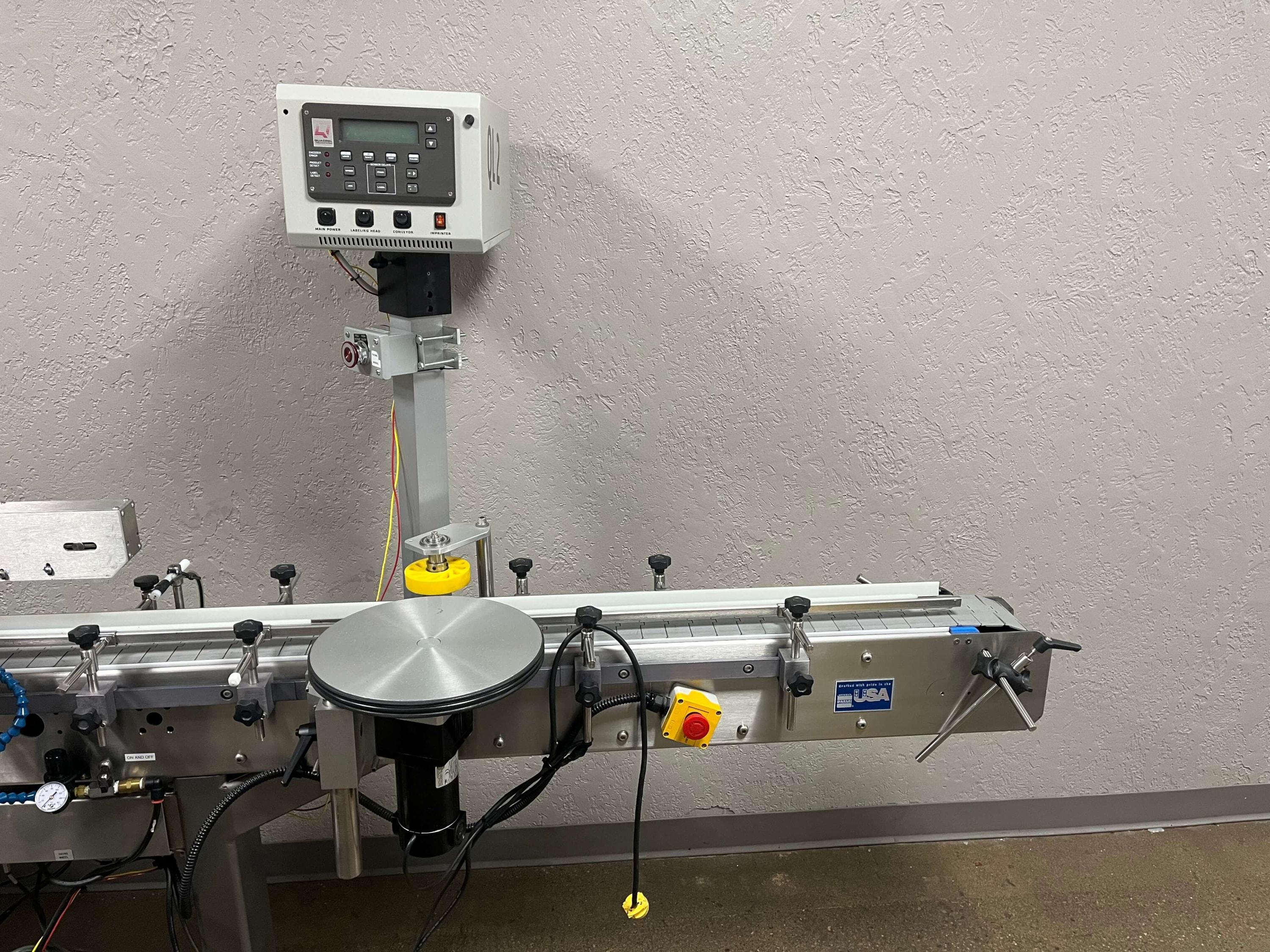

Operator Interface Controls
Electrical 220 Volts / 50/60 Hz / 1 Phase
